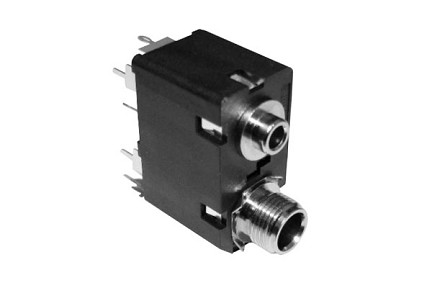

  7. ACJS-MVD985-3 3.5mm and 1/4" Dual Vertical PCB Phone Jack, Stereo (3 Channels), Metal Bore, Metal Nut, Metal Thread
ACJS-MVD985-3 3.5mm and 1/4
ACJS-MVD985-3 3.5mm and 1/4' Dual Vertical PCB Phone Jack, Stereo (3 Channels), Metal Bore, Metal Nut, Metal Thread

ACJS-MVD985-3 3.5mm and 1/4" Dual Vertical PCB Phone Jack, Stereo (3 Channels), Metal Bore, Metal Nut, Metal Thread

$0.00
3.5mm & 1/4" Vertical Phone Jack
PART NUMBER: ACJS-MVD985-3
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Nylon PA66 30% Glass Filled
  • IP Rating: IP40
  • Termination: Solder, PCB or Combo
  • Operating Temperature: -25°C to +70°C (-13°F to 158°F)
  • Mating Cycles: Min. of 10,000 cycles
  • Voltage: 34V
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
3.5mm and 1/4" Dual Vertical PCB Phone Jack, Stereo (3 Channels), Metal Bore, Metal Nut, Metal Thread
