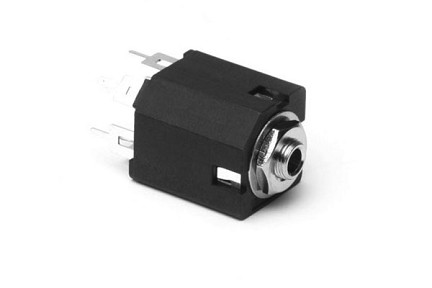

ACJS-MV35-3S 3.5mm Jack, Vertical, Stereo, Metal Nut, Bore & Thread, SCHEM 3S
ACJS-MV35-3S 3.5mm Jack, Vertical, Stereo, Metal Nut, Bore & Thread, SCHEM 3S

ACJS-MV35-3S 3.5mm Jack, Vertical, Stereo, Metal Nut, Bore & Thread, SCHEM 3S

$0.00
3.5mm Vertical Jack
PART NUMBER: ACJS-MV35-3S
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Finish: Black
  • IP Rating: IP40
  • Current Carrying Capacity: 10A (depending on mating connector)
  • Termination: Solder
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: < 10mΩ
  • Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
  • Operating Temperature: -25°C to + 70°C (-13°F to 158°F)
  • Insertion and Withdrawal Force: > 10N - < 30N
  • Mating Cycles: Min. of 10,000 cycles
  • Housing Material: Nylon PA66 30% Glass Filled
  • Voltage: 34V
  • Application(s): Audio & Lighting
3.5mm Jack, Vertical, Stereo, Metal Nut, Bore & Thread, SCHEM 3S
