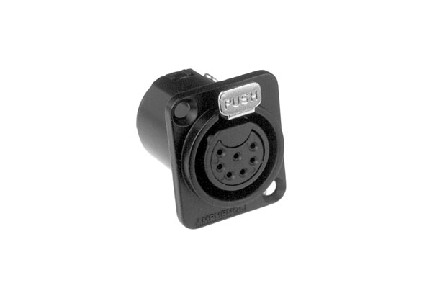

AC7FDZB BULK 7 Pole XLR Female Chassis Mount, D Type, Machi

AC7FDZB BULK 7 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC7FD-L-B-1

$0.00

Audio Cable Connector

PART NUMBER: AC7FDZB BULK

Datasheet:

Positions: 7
Gender: Female
Finish: Black
Current Carrying Capacity: 5A
IP Rating: IP40
Contact Type: Machined
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 20AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1400V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: > 100mΩ
Operating Temperature: -25°C to +75°C (-13°F to +167°F)
Mating Cycles: 1000
Housing Material: Diecast Zinc Alloy
Application(s): Audio & Lighting

QUANTITY

7 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC7FD-L-B-1
