  8. AC7FPZ 7 Pole XLR Metal Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC7FP1, XLR-7-31, XLB2-7-31

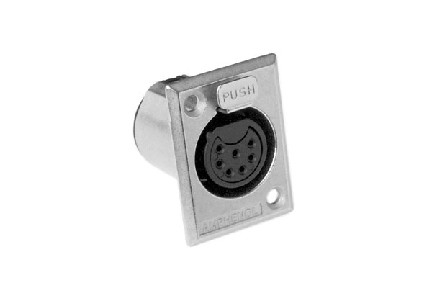

AC7FPZ 7 Pole XLR Metal Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC7FP1, XLR-7-31, XLB2-7-31
AC7FPZ 7 Pole XLR Metal Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC7FP1, XLR-7-31, XLB2-7-31

AC7FPZ 7 Pole XLR Metal Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC7FP1, XLR-7-31, XLB2-7-31

$0.00
XLR Metal Female Chassis Mount
PART NUMBER: AC7FPZ
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 7
  • Gender: Female
  • Current Carrying Capacity: 5A
  • Housing Material: Diecast Zinc Alloy
  • Finish: Nickel
  • Contact Type: Stamped
  • IP Rating: IP40
  • Termination: Solder Bucket / Printed Circuit Board (PCB)
  • Max Wire Gauge: 20AWG
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
7 Pole XLR Metal Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC7FP1, XLR-7-31, XLB2-7-31
