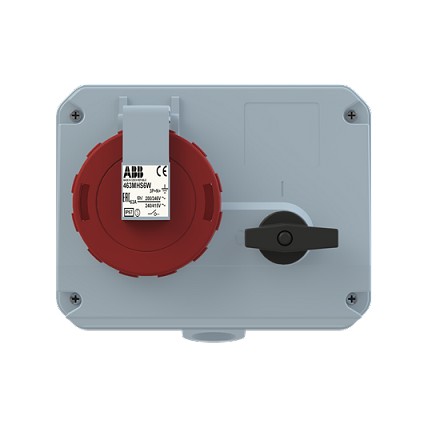

2CMA167905R1000 3P+N+E Industrial Switch Socket, Replaces Part# 463MHS6W
2CMA167905R1000 3P+N+E Industrial Switch Socket, Replaces Part# 463MHS6W

2CMA167905R1000 3P+N+E Industrial Switch Socket, Replaces Part# 463MHS6W

$0.00
PART NUMBER: 2CMA167905R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 5
  • Contacts: 3P+N+E
  • Contacts Included?: Yes
  • Clock Position: 6Hour
  • Current Rating: 63A
  • Voltage Rating: 200/346 ... 240/415 volt
  • Protection Rating: IP67
  • Housing: Thermoplastic (PBT)
  • Wire Gauge Range: 6-25
  • Cable Cross Section: 6...25 mm²
  • Operating Temperature: -25°C to 40°C
  • Shape: Circular
  • Color: Red
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Standard: IEC 60309-1, -2, -4
  • Frequency: 50 hertz|60 hertz
2CMA167905R1000 3P+N+E Industrial Switch Socket, Replaces Part# 463MHS6W
