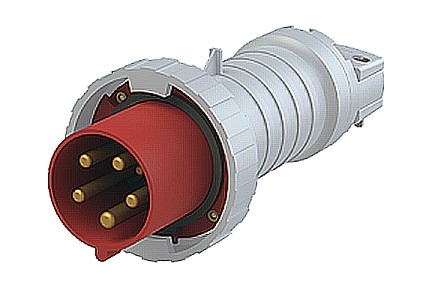

2CMA166798R1000 3P+N+E Industrial Plug. Replaces Part# 463P6W. Comparable to PNs# GW61053,035-6,S53S35,3124,269,218.63 37,477427,PEW 6365 SV,PV463-6S

2CMA166798R1000 3P+N+E Industrial Plug. Replaces Part# 463P6W. Comparable to PNs# GW61053,035-6,S53S35,3124,269,218.63 37,477427,PEW 6365 SV,PV463-6S

2CMA166798R1000 3P+N+E Industrial Plug. Replaces Part# 463P6W. Comparable to PNs# GW61053,035-6,S53S35,3124,269,218.63 37,477427,PEW 6365 SV,PV463-6S

$0.00

Plug

PART NUMBER: 2CMA166798R1000

Datasheet:

View / Download

Number of Poles: 5
Contacts: 3P+N+E
Clock Position: 6Hour
Current Rating: 63 A
Voltage Rating: 200/346- 240/415 V
Cable Cross Section: 4 - 16 mm²
International Standard: IEC 60309-1|IEC 60309-2
Shape: Circular
Protection Rating: IP67|IP69
Color: Red
Housing Material: Thermoplastic (PBT)
RoHS Status: Following EU Directive 2011/65/EU

QUANTITY

Description

3P+N+E Industrial Plug. Replaces Part# 463P6W. Comparable to PNs# GW61053,035-6,S53S35,3124,269,218.63 37,477427,PEW 6365 SV,PV463-6S

2CMA164998R1000 2P+E, 3P+E and 3P+N+E Industrial Protective Cover for Plugs and Sockets. Replaces Part# GP63

2CMA164998R1000 2P+E, 3P+E and 3P+N+E Industrial Protective Cover for Plugs and Sockets. Replaces Part# GP63
