TM2PB 1/4

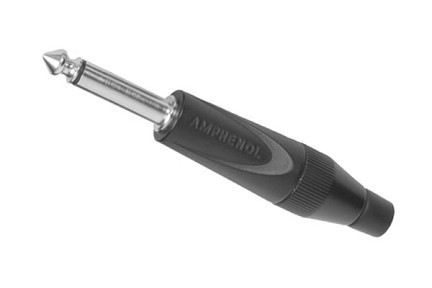

TM2PB 1/4' Phone Plug, Mono, Nickel Sleeve and Tip, Black Shell, Professional Range, Heavy Duty

TM2PB 1/4" Phone Plug, Mono, Nickel Sleeve and Tip, Black Shell, Professional Range, Heavy Duty

$0.00
1/4" Phone Plug
PART NUMBER: TM2PB
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 2
  • Finish: Black
  • Contact Plating: Nickel
  • IP Rating: IP40
  • Current Carrying Capacity: 10A (depends on mating connector and cable)
  • Termination: Solder
  • Max Wire Gauge: 16AWG -1.5mm²
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: Depends on mating connector
  • Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
  • Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
  • Insertion and Withdrawal Force: > 10N - < 30N
  • Typical Cable Retention Force: 22kg to 44kg (50lb to 100lb) - Dependent on cable material and diameter.
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • Application(s): Audio & Lighting
1/4" Phone Plug, Mono, Male, Nickel Sleeve and Tip, Black Shell, Professional Range, Heavy Duty
