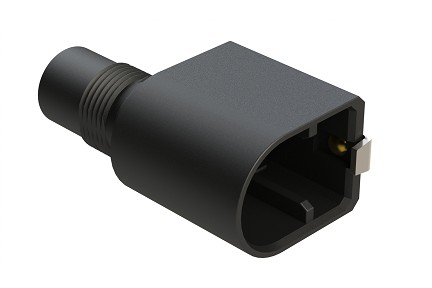

TM04-7P Receptacle, 7 Positions, Male, Contact size 20
TM04-7P Receptacle, 7 Positions, Male, Contact size 20

TM04-7P Receptacle, 7 Positions, Male, Contact size 20

$0.00
Receptacle
PART NUMBER: TM04-7P
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 7
  • Amperage: 7.5A
  • IP Rating: IP54
  • Voltage: 300
  • Contacts Included: No
  • Contact Size: 20
  • Contact type (Pin/Socket): Pin
  • Color: Black
  • Operating Temperature: -40°C to +105°C
  • Housing Material: Nylon
  • Seal Material: Silicone Rubber
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • RoHS Compliant?: Yes
  • Mating Cycle Durability: >100
  • Mating Part(s): TM02-7P-4
Receptacle, 7 Positions, Male, Contact size 20
