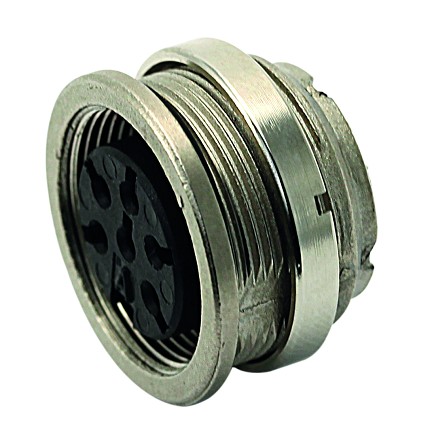

  6. T 3653 000 - M16 Front mounting female receptacle with ring nut. 14 contacts, silver plated. Contacts included.
T 3653 000 - M16 Front mounting female receptacle with ring nut. 14 contacts, silver plated. Contacts included.
T 3653 000 - M16 Front mounting female receptacle with ring nut. 14 contacts, silver plated. Contacts included.

T 3653 000 - M16 Front mounting female receptacle with ring nut. 14 contacts, silver plated. Contacts included.

$0.00
Female Receptacle
PART NUMBER: T3653000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 14
  • Contact Resistance: < 5mΩ
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: > 500 mating cycles
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Current Rating: 3A
  • Operating Temperature: -40°C to +100°C
  • Insertion/Withdrawal Force: 50 N
  • Housing: Die cast, nickel plated
  • Mount: Front
  • Protection: IP40
  • Locking: Screw
  • Contact Plating: Silver
  • Termination: Solder
  • Insert: Thermoplastic
  • Rate Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Mating Part(s): T3652001,T3652110,T3650001,T3650020
  • Size: M16
Front mounting female receptacle with ring nut (hex nut available upon request). Contacts included.
