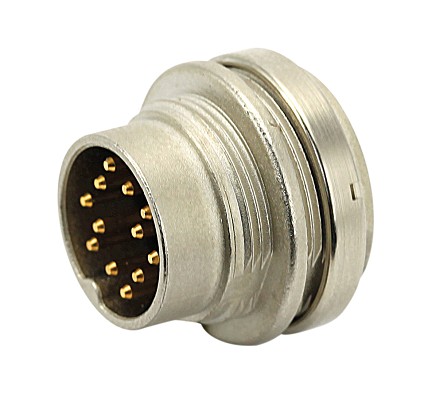

  6. T 3652 304 - M16 Front mounting male receptacle with ring nut. 14 contacts, gold plated Contacts included. Comparable to PN# 09-0053-50-14
T 3652 304 - M16 Front mounting male receptacle with ring nut. 14 contacts, gold plated Contacts included. Comparable to PN# 09-0053-50-14
T 3652 304 - M16 Front mounting male receptacle with ring nut. 14 contacts, gold plated Contacts included. Comparable to PN# 09-0053-50-14

T 3652 304 - M16 Front mounting male receptacle with ring nut. 14 contacts, gold plated Contacts included. Comparable to PN# 09-0053-50-14

$0.00
Male Receptacle
PART NUMBER: T3652304
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 14
  • Contact Resistance: < 5mΩ
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: > 1000 mating cycles
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Pin length: 10.5mm from flange
  • Current Rating: 3A
  • Operating Temperature: -40°C to +100°C
  • Insertion/Withdrawal Force: 50 N
  • Housing: Die cast, nickel plated
  • Mount: Front
  • Contact Plating: Gold
  • Protection: IP40
  • Locking: Screw
  • Termination: Solder
  • Insert: Thermoplastic
  • Rate Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Mating Part(s): T3653404,T3653118,T3653304
  • Size: M16
Front mounting male receptacle with ring nut (hex nut available upon request). Pin length of 10.5mm from flange. Contacts included.
