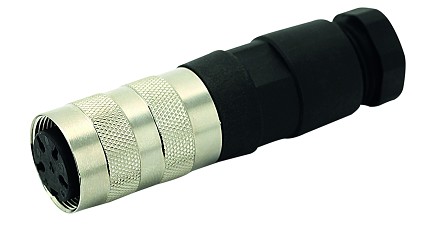

  6. T 3651 002 - M16 Female straight cable connector with internal strain relief and metal locking ring. 14 contacts, gold plated, 6-8mm cable diameter Contacts included. Comparable to PN# 99-2034-02-14, 09-0052-02-14, 99-2034-92-14, 09-0052-92-14
T 3651 002 - M16 Female straight cable connector with internal strain relief and metal locking ring. 14 contacts, gold plated, 6-8mm cable diameter Contacts included. Comparable to PN# 99-2034-02-14, 09-0052-02-14, 99-2034-92-14, 09-0052-92-14
T 3651 002 - M16 Female straight cable connector with internal strain relief and metal locking ring. 14 contacts, gold plated, 6-8mm cable diameter Contacts included. Comparable to PN# 99-2034-02-14, 09-0052-02-14, 99-2034-92-14, 09-0052-92-14

T 3651 002 - M16 Female straight cable connector with internal strain relief and metal locking ring. 14 contacts, gold plated, 6-8mm cable diameter Contacts included. Comparable to PN# 99-2034-02-14, 09-0052-02-14, 99-2034-92-14, 09-0052-92-14

$0.00
Female Cable Connector
PART NUMBER: T3651002
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 14
  • Contact Resistance: < 5mΩ
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: > 1000 mating cycles
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Current Rating: 3A
  • Operating Temperature: -40°C to +100°C
  • Insertion/Withdrawal Force: 50 N
  • Cable Diameter: 6 - 8mm
  • Housing: Die cast, nickel plated
  • Contact Plating: Gold
  • Protection: IP40
  • Locking: Screw
  • Termination: Solder
  • Version: Straight
  • Insert: Thermoplastic
  • Rate Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Mating Part(s): T3650002,T3652000,T3652100
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
