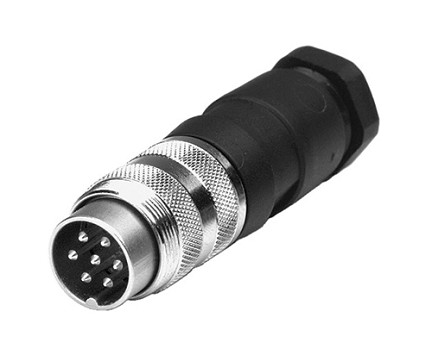

  6. T 3635 002 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-2029-92-12, 99-2029-02-12, 09-0026-02-12
T 3635 002 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-2029-92-12, 99-2029-02-12, 09-0026-02-12
T 3635 002 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-2029-92-12, 99-2029-02-12, 09-0026-02-12

T 3635 002 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-2029-92-12, 99-2029-02-12, 09-0026-02-12

$0.00
Male Cable Connector
PART NUMBER: T3635002
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 12
  • Cable Diameter: 6 - 8mm
  • Current Rating: 3A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 1000 mating cycles
  • Mating Part(s): T3636002,T3638004,T3638304,T3638118
  • Size: M16
Male cable connector with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
