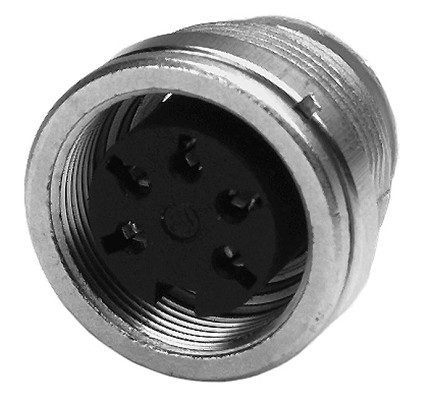

  6. T 3507 009 - M16 Female receptacle Front mounting, 8 contacts, 1 V, Termination: solder, Contact plating: silver plated
T 3507 009 - M16 Female receptacle Front mounting, 8 contacts, 1 V, Termination: solder, Contact plating: silver plated
T 3507 009 - M16 Female receptacle Front mounting, 8 contacts, 1 V, Termination: solder, Contact plating: silver plated

T 3507 009 - M16 Female receptacle Front mounting, 8 contacts, 1 V, Termination: solder, Contact plating: silver plated

$0.00
Receptacle
PART NUMBER: T3507009
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 8
  • Current Rating: 7A
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 60 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 250V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Mount: Front
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Size: M16
Female receptacle front mounting, 8 contacts, 100 V, Termination: solder, Contact plating: silver plated

Related Items

C091 A/B/D Series Circular Connectors Catalog
C091 A/B/D Series Circular Connectors Catalog
REQUEST A QUOTE
T 3507 000 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-00-08
T 3507 000 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-00-08
REQUEST A QUOTE
T 3507 018 Size M16 Front mounting female receptacle with ring nut. 8 contacts, gold plated Contacts included. Comparable to PN# 09-0474-09-08
T 3507 018 Size M16 Front mounting female receptacle with ring nut. 8 contacts, gold plated Contacts included. Comparable to PN# 09-0474-09-08
REQUEST A QUOTE
T 3507 300 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated Contacts included. Comparable to PN# 09-0474-50-08
T 3507 300 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated Contacts included. Comparable to PN# 09-0474-50-08
REQUEST A QUOTE
T 3507 320 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated Contacts included.
T 3507 320 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated Contacts included.
REQUEST A QUOTE
T 3507 330 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
T 3507 330 - M16 Front mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
REQUEST A QUOTE
T 3507 550 - M16 Front mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3507 550 - M16 Front mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
REQUEST A QUOTE
T 3507 100 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-80-08
T 3507 100 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-80-08
REQUEST A QUOTE
T 3507 118 - M16 Rear mounting female receptacle with ring nut. 8 contacts, gold plated Contacts included. Comparable to PN# 09-0474-89-08
T 3507 118 - M16 Rear mounting female receptacle with ring nut. 8 contacts, gold plated Contacts included. Comparable to PN# 09-0474-89-08
REQUEST A QUOTE
T 3507 150 - M16 Rear mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3507 150 - M16 Rear mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
REQUEST A QUOTE
T 3507 400 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-90-08
T 3507 400 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included. Comparable to PN# 09-0474-90-08
REQUEST A QUOTE
T 3507 404 - M16 Rear mounting female receptacle with ring nut. 8 contacts, gold plated. Contacts included.
T 3507 404 - M16 Rear mounting female receptacle with ring nut. 8 contacts, gold plated. Contacts included.
REQUEST A QUOTE
T 3507 420 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
T 3507 420 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
REQUEST A QUOTE
T 3507 430 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
T 3507 430 - M16 Rear mounting female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
REQUEST A QUOTE
T 3507 900 - M16 Rear mounting right angled Female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
T 3507 900 - M16 Rear mounting right angled Female receptacle with ring nut. 8 contacts, silver plated. Contacts included.
REQUEST A QUOTE
T 3507 902 - M16 Rear mounting right angled Female receptacle with ring nut. 8 contacts, gold plated Contacts included.
T 3507 902 - M16 Rear mounting right angled Female receptacle with ring nut. 8 contacts, gold plated Contacts included.
REQUEST A QUOTE
