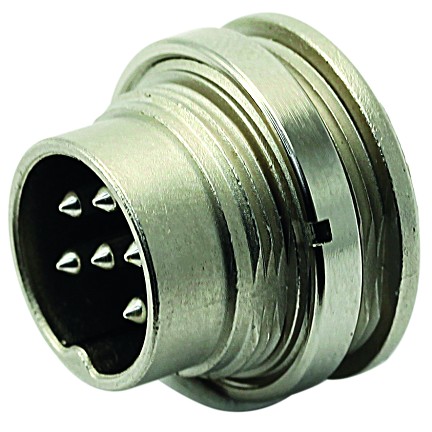

  6. T 3506 150 - M16 Rear mounting male receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3506 150 - M16 Rear mounting male receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3506 150 - M16 Rear mounting male receptacle with ring nut. 8 contacts. Contacts sold separately.

T 3506 150 - M16 Rear mounting male receptacle with ring nut. 8 contacts. Contacts sold separately.

$0.00
Male Receptacle
PART NUMBER: T3506150
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 8
  • Current Rating: 5A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Wire Gauge: 0.09 - 0.75mm² (28-20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 60 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Mount: Rear
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3507550,T3507150,T3505551,T3505552
  • Size: M16
Rear mounting male receptacle with ring nut (hex nut available upon request). 8 contacts. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts sold separately. Termination: solder or crimp.

Related Items

HN01 015 0046 1 - 1.5mm pin contact, silver plated, wire gauge 0.34-0.50mm². Stamped contacts on reel. 2000 pcs
HN01 015 0046 1 - 1.5mm pin contact, silver plated, wire gauge 0.34-0.50mm². Stamped contacts on reel. 2000 pcs
REQUEST A QUOTE
HN0101500462 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500462 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500471 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500471 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500472 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500472 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
T 3504 055 - M16 Male right angled cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
T 3504 055 - M16 Male right angled cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3504 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
T 3504 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3504 552 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter.6-8 Contacts sold separately.
T 3504 552 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter.6-8 Contacts sold separately.
REQUEST A QUOTE
T 3504 554 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
T 3504 554 - M16 Male straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3505 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter. Contacts sold separately.
T 3505 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 8 contacts, 4-6mm cable diameter. Contacts sold separately.
REQUEST A QUOTE
T 3505 552 - M16 Female straight cable connector with internal strain relief and metal locking ring. 8 contacts, 6-8mm cable diameter Contacts sold separately.
T 3505 552 - M16 Female straight cable connector with internal strain relief and metal locking ring. 8 contacts, 6-8mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3506 550 - M16 Front mounting male receptacle with ring nut. 8 contacts, sold separately Contacts sold separately.
T 3506 550 - M16 Front mounting male receptacle with ring nut. 8 contacts, sold separately Contacts sold separately.
REQUEST A QUOTE
T 3507 150 - M16 Rear mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3507 150 - M16 Rear mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
REQUEST A QUOTE
T 3507 550 - M16 Front mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
T 3507 550 - M16 Front mounting female receptacle with ring nut. 8 contacts. Contacts sold separately.
REQUEST A QUOTE
TN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
TN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
VN0101500461 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0795-085-00
VN0101500461 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0795-085-00
REQUEST A QUOTE
VN0101500462 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
VN0101500462 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0101500471 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0796-085-00
VN0101500471 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0796-085-00
REQUEST A QUOTE
VN0101500472 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
VN0101500472 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN 01 015 0052 1 - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, silver plated.
VN 01 015 0052 1 - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, silver plated.
REQUEST A QUOTE
VN01 015 0052 (2) - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, gold plated
VN01 015 0052 (2) - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN01 015 0046 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
ZN01 015 0046 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN01 015 0046 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
ZN01 015 0046 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN01 015 0047 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
ZN01 015 0047 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN01 015 0047 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
ZN01 015 0047 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
