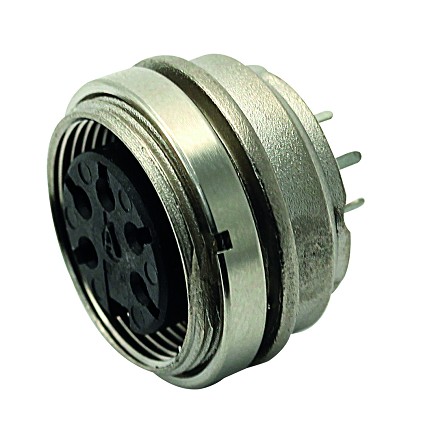

  6. T 3478 400 - M16 Rear mounting female receptacle with ring nut. 7 contacts, silver plated Contacts included. Comparable to PN# 09-0328-90-07
T 3478 400 - M16 Rear mounting female receptacle with ring nut. 7 contacts, silver plated Contacts included. Comparable to PN# 09-0328-90-07
T 3478 400 - M16 Rear mounting female receptacle with ring nut. 7 contacts, silver plated Contacts included. Comparable to PN# 09-0328-90-07

T 3478 400 - M16 Rear mounting female receptacle with ring nut. 7 contacts, silver plated Contacts included. Comparable to PN# 09-0328-90-07

$0.00
Female Receptacle
PART NUMBER: T3478400
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 7
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Rear
  • Operating Temperature: -40²C to +100²C
  • Pin length: 10.5mm from flange
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3477300,T3477400,T3477000,T3477100
  • Size: M16
Rear mounting female receptacle with ring nut (hex nut available upon request). Pin length of 10.5mm from flange. Contacts included.
