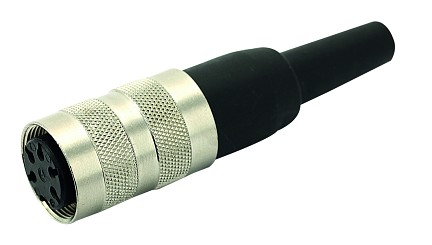

  6. T 3476 018 - M16 Female straight cable connector with internal strain relief and metal locking ring. 7 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2026-09-07, 09-0026-09-07
T 3476 018 - M16 Female straight cable connector with internal strain relief and metal locking ring. 7 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2026-09-07, 09-0026-09-07
T 3476 018 - M16 Female straight cable connector with internal strain relief and metal locking ring. 7 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2026-09-07, 09-0026-09-07

T 3476 018 - M16 Female straight cable connector with internal strain relief and metal locking ring. 7 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2026-09-07, 09-0026-09-07

$0.00
Female Cable Connector
PART NUMBER: T3476018
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 7
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 1000 mating cycles
  • Mating Part(s): T3475018,T3475048,T3475038,T3475058
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
