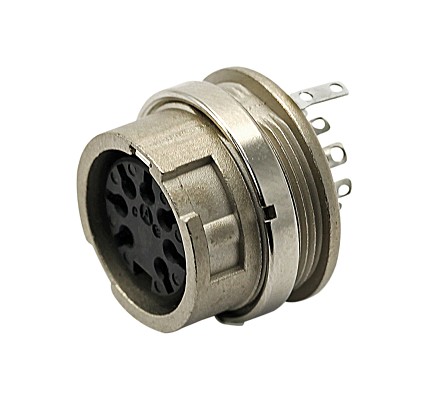

  6. T 3447 100 - M16 Rear mounting straight Female metal receptacle with ring nut. 7 contacts, silver plated Contacts included.
T 3447 100 - M16 Rear mounting straight Female metal receptacle with ring nut. 7 contacts, silver plated Contacts included.
T 3447 100 - M16 Rear mounting straight Female metal receptacle with ring nut. 7 contacts, silver plated Contacts included.

T 3447 100 - M16 Rear mounting straight Female metal receptacle with ring nut. 7 contacts, silver plated Contacts included.

$0.00
Female Receptacle
PART NUMBER: T3447100
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 7
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Bayonet; outside lock
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Mount: Rear w/ring nut
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3444501,T3444502,T3444504,T3444005
  • Size: M16
Rear mounting female metal receptacle with ring nut (hex nut available upon request). Bayonet locking outside (mateable with locking inside). 7 contacts, silver plated,  B arrangement. Contacts included. Contact arrangement according to DIN EN 61076-2-106 "0X-b". Replaces T 3447 150.
