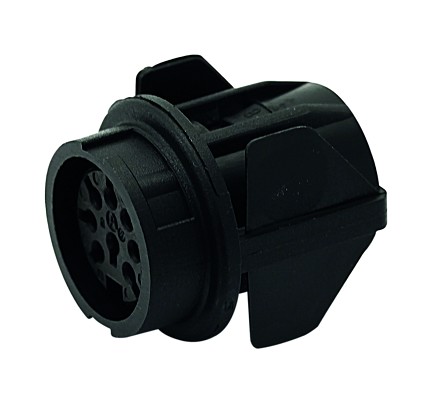

  6. T 3437 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 7 contacts Contacts sold separately.
T 3437 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 7 contacts Contacts sold separately.
T 3437 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 7 contacts Contacts sold separately.

T 3437 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 7 contacts Contacts sold separately.

$0.00
Female Receptacle
PART NUMBER: T3437550
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 7
  • Current Rating: 7A
  • Termination: Crimp
  • Locking: Bayonet; outside lock
  • Insert: Thermoplastic
  • Version: Straight; full plastic
  • Wire Gauge: 0.09 - 0.75mm² (28-20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Front snap-in
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3434551,T3434552,T3434554,T3434055
  • Size: M16
Straight, full plastic front mounting female receptacle with snap-in mount. 7 contacts. 1.5mm max panel thickness (±0.25). Bayonet locking outside (mateable with locking inside). Contacts sold separately. Replaces T 3447 550.

Related Items

HN02 015 0046 1 - 1.5mm socket contact, silver plated, wire gauge 0.34 - 0.5mm². Stamped contacts on reel, 2000 pcs
HN02 015 0046 1 - 1.5mm socket contact, silver plated, wire gauge 0.34 - 0.5mm². Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
HN0201500462 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500462 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500471 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500471 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500472 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500472 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
T 3434 055 - M16 Male right angled cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
T 3434 055 - M16 Male right angled cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3434 551 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately. Comparable to PN# 99-1621-00-07
T 3434 551 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately. Comparable to PN# 99-1621-00-07
REQUEST A QUOTE
T 3434 552 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 6-8mm cable diameter Contacts sold separately. Comparable to PN# 99-1621-02-07
T 3434 552 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 6-8mm cable diameter Contacts sold separately. Comparable to PN# 99-1621-02-07
REQUEST A QUOTE
T 3434 554 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
T 3434 554 - M16 Male straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3438 551 - M16 Female straight cable connector with black cable sleeve. 7 contacts, 4-6mm cable diameter Contacts sold separately.
T 3438 551 - M16 Female straight cable connector with black cable sleeve. 7 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3438 552 - M16 Female straight cable connector with internal strain relief and clamping ring. 7 contacts, 6-8mm cable diameter Contacts sold separately.
T 3438 552 - M16 Female straight cable connector with internal strain relief and clamping ring. 7 contacts, 6-8mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3438 554 - M16 Female straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
T 3438 554 - M16 Female straight cable connector with internal strain relief and plastic locking ring. 7 contacts, 4-6mm cable diameter Contacts sold separately.
REQUEST A QUOTE
TN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
TN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
VN0201500461 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500461 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500462 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500462 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500471 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500471 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500472 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500472 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN 02 015 0052 1 - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, silver plated.
VN 02 015 0052 1 - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, silver plated.
REQUEST A QUOTE
VN02 015 0052 (2) - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, gold plated
VN02 015 0052 (2) - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN0201500461 1.5mm silver socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
ZN0201500461 1.5mm silver socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
REQUEST A QUOTE
ZN0201500462 1.5mm gold socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
ZN0201500462 1.5mm gold socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
REQUEST A QUOTE
ZN02 015 0047 (1) - Stamped contacts on reel for hand crimping tools. 1.5mm contact diameter, silver plated
ZN02 015 0047 (1) - Stamped contacts on reel for hand crimping tools. 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN02 015 0047 (2) - Stamped contacts on reel for hand crimping tools.1,5 mmFor wire gauge AWG 18 gold plated
ZN02 015 0047 (2) - Stamped contacts on reel for hand crimping tools.1,5 mmFor wire gauge AWG 18 gold plated
REQUEST A QUOTE
