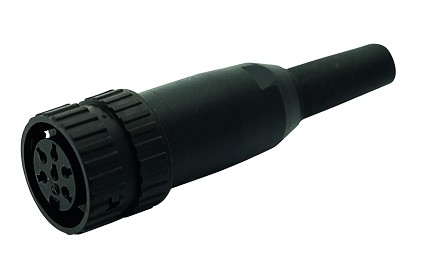

  6. T 3435 951 - M16 Full plastic straight Female cable connector with internal strain relief and plastic locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.
T 3435 951 - M16 Full plastic straight Female cable connector with internal strain relief and plastic locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.
T 3435 951 - M16 Full plastic straight Female cable connector with internal strain relief and plastic locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.

T 3435 951 - M16 Full plastic straight Female cable connector with internal strain relief and plastic locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.

$0.00
Female Cable Connector
PART NUMBER: T3435951
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Crimp
  • Locking: Bayonet; inside lock
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.09 - 0.75mm² (28-20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3436550,T3439551,T3439554
  • Size: M16
Full plastic straight female cable connector with internal strain relief and plastic locking ring. 6 contacts, 4-6mm cable diameter. Bayonet locking inside (mateable with locking outside). Contacts sold separately.
