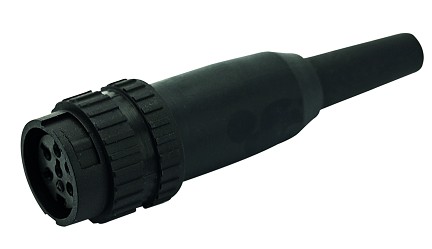

  6. T 3428 951 - M16 Full plastic straight Female cable connector with black cable sleeve. 5 contacts Contacts sold separately.
T 3428 951 - M16 Full plastic straight Female cable connector with black cable sleeve. 5 contacts Contacts sold separately.
T 3428 951 - M16 Full plastic straight Female cable connector with black cable sleeve. 5 contacts Contacts sold separately.

T 3428 951 - M16 Full plastic straight Female cable connector with black cable sleeve. 5 contacts Contacts sold separately.

$0.00
Female Cable Connector
PART NUMBER: T3428951
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 5S (stereo)
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Crimp
  • Locking: Bayonet; outside lock
  • Insert: Thermoplastic
  • Version: Straight with cable sleeve
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3424551,T3424951,T3424554,T3424055
  • Size: M16
Full plastic straight female cable connector with black cable sleeve. 5S (stereo) contacts. Bayonet locking outside (mateable with locking inside). Contacts sold separately. Contact arrangement according to DIN EN 61076-2-106 "0X-b".
