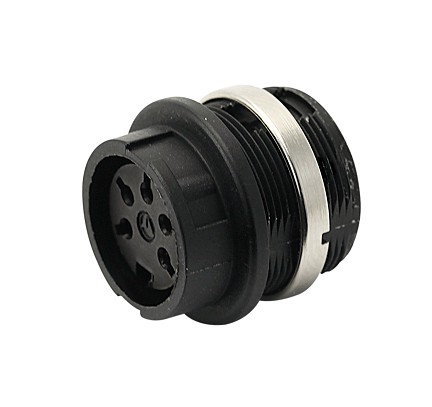

  6. T 3427 018 - M16 Straight, full plastic front mounting female receptacle with ring nut. 6 contacts, gold plated Contacts included.
T 3427 018 - M16 Straight, full plastic front mounting female receptacle with ring nut. 6 contacts, gold plated Contacts included.
T 3427 018 - M16 Straight, full plastic front mounting female receptacle with ring nut. 6 contacts, gold plated Contacts included.

T 3427 018 - M16 Straight, full plastic front mounting female receptacle with ring nut. 6 contacts, gold plated Contacts included.

$0.00
Female Receptacle
PART NUMBER: T3427018
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Bayonet; outside lock
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight; full plastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Front
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 1000 mating cycles
  • Mating Part(s): T3424518,T3424528,T3424548
  • Size: M16
Straight, full plastic front mounting female receptacle with ring nut (hex nut available on request). Bayonet locking outside (mateable with locking inside). Contacts included.
