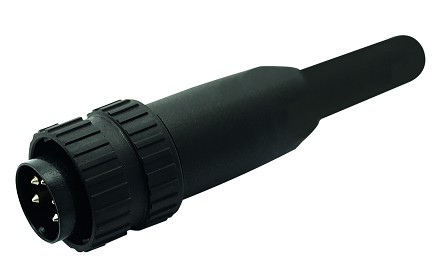

  6. T 3424 991 - M16 Full plastic male cable connector with internal strain relief and plastic locking ring. 6 contacts, silver plated, 4-6 mm cable diameter Contacts included.
T 3424 991 - M16 Full plastic male cable connector with internal strain relief and plastic locking ring. 6 contacts, silver plated, 4-6 mm cable diameter Contacts included.
T 3424 991 - M16 Full plastic male cable connector with internal strain relief and plastic locking ring. 6 contacts, silver plated, 4-6 mm cable diameter Contacts included.

T 3424 991 - M16 Full plastic male cable connector with internal strain relief and plastic locking ring. 6 contacts, silver plated, 4-6 mm cable diameter Contacts included.

$0.00
Male Cable Connector
PART NUMBER: T3424991
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Bayonet; inside lock
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight; full plastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3428501,T3428504,T3428991
  • Size: M16
Full plastic male cable connector with internal strain relief and plastic locking ring. Bayonet locking inside (mateable with locking outside) and transparent cable sleeve. Contacts included.
