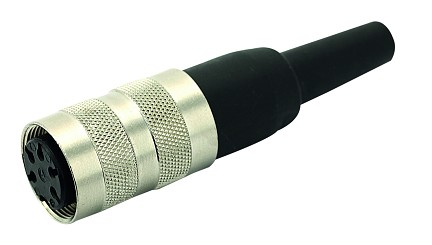

  6. T 3401 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.
T 3401 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.
T 3401 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.

T 3401 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 6 contacts, 4-6mm cable diameter Contacts sold separately.

$0.00
Female Cable Connector
PART NUMBER: T3401551
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3400551,T3400554,T3400556,T3400055
  • Size: M16
Female straight cable connector with internal strain relief and metal locking ring. 6 contacts, 4-6mm cable diameter. Screw locking according to IEC 61076-2-106. Contacts sold separately.
