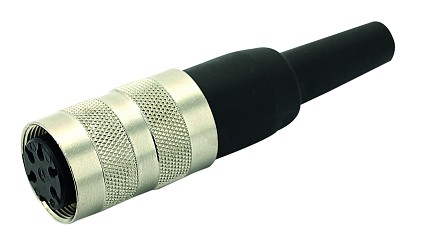

  6. T 3401 018 - M16 Female cable connector with internal strain relief and metal locking ring. 6 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 09-0022-09-06,99-2022-09-06
T 3401 018 - M16 Female cable connector with internal strain relief and metal locking ring. 6 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 09-0022-09-06,99-2022-09-06
T 3401 018 - M16 Female cable connector with internal strain relief and metal locking ring. 6 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 09-0022-09-06,99-2022-09-06

T 3401 018 - M16 Female cable connector with internal strain relief and metal locking ring. 6 contacts, gold plated, 4-6mm cable diameter Contacts included. Comparable to PN# 09-0022-09-06,99-2022-09-06

$0.00
Female Cable Connector
PART NUMBER: T3401018
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 1000 mating cycles
  • Mating Part(s): T3400018,T3400048,T3400038,T3400058
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
