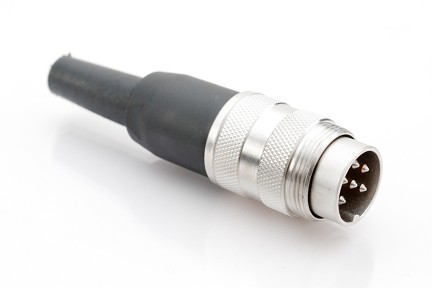

  6. T 3400 001 - M16 Male straight cable connector with internal strain relief and metal locking ring. 6 contacts, silver plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2021-00-06, 99-2021-00-06, 09-0021-00-06
T 3400 001 - M16 Male straight cable connector with internal strain relief and metal locking ring. 6 contacts, silver plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2021-00-06, 99-2021-00-06, 09-0021-00-06
T 3400 001 - M16 Male straight cable connector with internal strain relief and metal locking ring. 6 contacts, silver plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2021-00-06, 99-2021-00-06, 09-0021-00-06

T 3400 001 - M16 Male straight cable connector with internal strain relief and metal locking ring. 6 contacts, silver plated, 4-6mm cable diameter Contacts included. Comparable to PN# 99-2021-00-06, 99-2021-00-06, 09-0021-00-06

$0.00
Male Cable Connector
PART NUMBER: T3400001
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 6
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3401001,T3401004,T3401013,T3401005
  • Size: M16
Male cable connector with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
