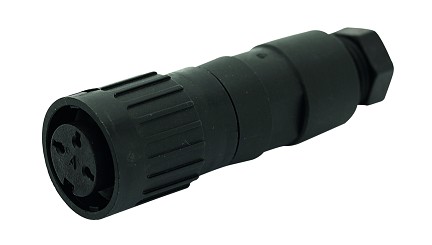

  6. T 3395 504 - M16 Female straight cable connector with internal strain relief and plastic locking ring. S (stereo) contacts, silver plated, 4-6mm cable diameter Contacts included.
T 3395 504 - M16 Female straight cable connector with internal strain relief and plastic locking ring. S (stereo) contacts, silver plated, 4-6mm cable diameter Contacts included.
T 3395 504 - M16 Female straight cable connector with internal strain relief and plastic locking ring. S (stereo) contacts, silver plated, 4-6mm cable diameter Contacts included.

T 3395 504 - M16 Female straight cable connector with internal strain relief and plastic locking ring. S (stereo) contacts, silver plated, 4-6mm cable diameter Contacts included.

$0.00
Female Cable Connector
PART NUMBER: T3395504
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 5S (stereo)
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Bayonet; inside lock
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 35 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3396500,T3399504,T3399501
  • Size: M16
Female cable connector with internal strain relief and plastic locking ring. Bayonet locking inside (mateable with locking outside). Contacts included. Contact arrangement according to DIN EN 61076-2-106 "0X-b". Replaces T 3395 554.
