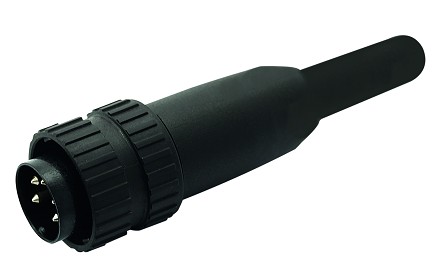

  6. T 3394 991 - M16 Full plastic straight male cable connector with internal strain relief and plastic locking ring. 5 contacts, silver plated, 4-6mm cable diameter Contacts included.
T 3394 991 - M16 Full plastic straight male cable connector with internal strain relief and plastic locking ring. 5 contacts, silver plated, 4-6mm cable diameter Contacts included.
T 3394 991 - M16 Full plastic straight male cable connector with internal strain relief and plastic locking ring. 5 contacts, silver plated, 4-6mm cable diameter Contacts included.

T 3394 991 - M16 Full plastic straight male cable connector with internal strain relief and plastic locking ring. 5 contacts, silver plated, 4-6mm cable diameter Contacts included.

$0.00
Male Cable Connector
PART NUMBER: T3394991
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 5S (stereo)
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Bayonet; inside lock
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight; full plastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 35 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3398501,T3398504
  • Size: M16
Full plastic male cable connector with internal strain relief and plastic locking ring. Bayonet locking inside (mateable with locking outside) and transparent cable sleeve. Contacts included. Contact arrangement according to DIN EN 61076-2-106 "0X
