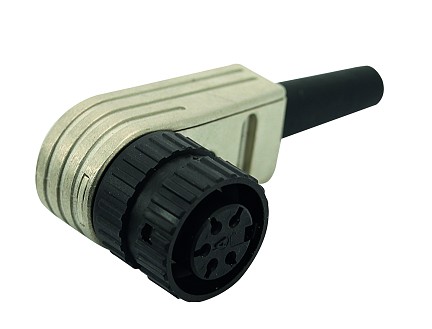

  6. T 3325 058 - M16 Female right angled cable connector with black cable sleeve. 4 contacts, gold plated, 4-6mm cable diameter. Contacts included.
T 3325 058 - M16 Female right angled cable connector with black cable sleeve. 4 contacts, gold plated, 4-6mm cable diameter. Contacts included.
T 3325 058 - M16 Female right angled cable connector with black cable sleeve. 4 contacts, gold plated, 4-6mm cable diameter. Contacts included.

T 3325 058 - M16 Female right angled cable connector with black cable sleeve. 4 contacts, gold plated, 4-6mm cable diameter. Contacts included.

$0.00
Female Cable Connector
PART NUMBER: T3325058
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 4
  • Cable Diameter: 4 - 6mm
  • Current Rating: 10A
  • Termination: Solder
  • Locking: Bayonet; inside lock
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Right angled with cable sleeve
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 30 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Operating Temperature: -40²C to +100²C
  • Lifetime: > 1000 mating cycles
  • Mating Part(s): T3326518,T3329548,T3329518
  • Size: M16
Female cable connector with black cable sleeve. Bayonet locking inside (mateable with locking outside). Contacts included.
