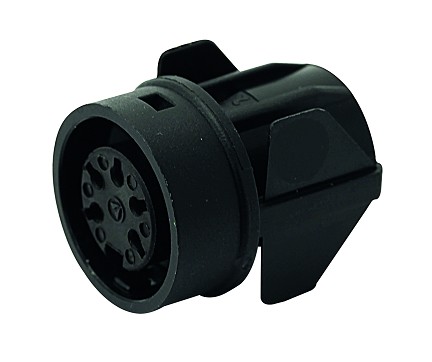

  6. T 3321 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 4 contacts. Contacts sold separately.
T 3321 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 4 contacts. Contacts sold separately.
T 3321 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 4 contacts. Contacts sold separately.

T 3321 550 - M16 Straight, full plastic front mounting female receptacle with snap-in mount. 4 contacts. Contacts sold separately.

$0.00
Female Receptacle
PART NUMBER: T3321550
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 4
  • Current Rating: 10A
  • Termination: Crimp
  • Locking: Bayonet; outside lock
  • Insert: Thermoplastic
  • Version: Straight; full plastic
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 30 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Front snap-in
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3329551,T3329552,T3329554
  • Size: M16
Straight, full plastic front mounting female receptacle with snap-in mount. 4 contacts. 1.5mm max panel thickness (±0.25). Bayonet locking inside (mateable with locking outside). Contacts sold separately.
