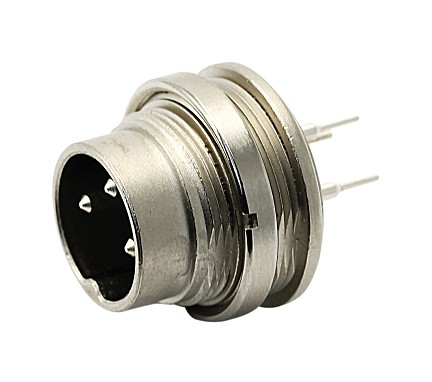

  6. T 3302 400 - M16 Rear mounting male receptacle with ring nut. 4 contacts, silver plated Contacts included. Comparable to PN# 09-0311-90-04
T 3302 400 - M16 Rear mounting male receptacle with ring nut. 4 contacts, silver plated Contacts included. Comparable to PN# 09-0311-90-04
T 3302 400 - M16 Rear mounting male receptacle with ring nut. 4 contacts, silver plated Contacts included. Comparable to PN# 09-0311-90-04

T 3302 400 - M16 Rear mounting male receptacle with ring nut. 4 contacts, silver plated Contacts included. Comparable to PN# 09-0311-90-04

$0.00
Male Receptacle
PART NUMBER: T3302400
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 4
  • Current Rating: 10A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 30 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Rear
  • Operating Temperature: -40²C to +100²C
  • Pin length: 10.5mm from flange
  • Lifetime: > 500 mating cycles
  • Mating Part(s): T3303300,T3303400,T3303420,T3303430
  • Size: M16
Rear mounting male receptacle with ring nut (hex nut available upon request). Pin length of 10.5mm from flange. Contacts included.
