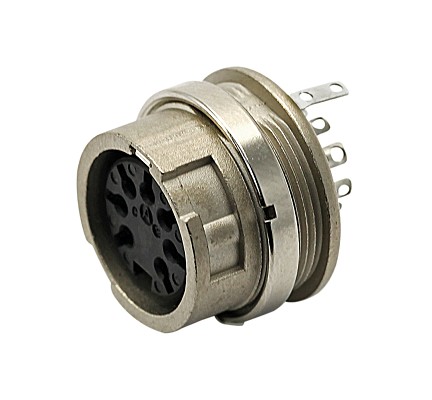

  6. T 3277 150 - M16 Rear mounting straight female metal receptacle with ring nut. 3 contacts. Contacts sold separately.
T 3277 150 - M16 Rear mounting straight female metal receptacle with ring nut. 3 contacts. Contacts sold separately.
T 3277 150 - M16 Rear mounting straight female metal receptacle with ring nut. 3 contacts. Contacts sold separately.

T 3277 150 - M16 Rear mounting straight female metal receptacle with ring nut. 3 contacts. Contacts sold separately.

$0.00
Female Receptacle
PART NUMBER: T3277150
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 3
  • Current Rating: 10A
  • Termination: Crimp
  • Locking: Bayonet; outside lock
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 25 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Mount: Rear w/ring nut
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3274551,T3274552,T3274554,T3274055
  • Size: M16
Rear mounting straight female metal receptacle with ring nut (hex nut available upon request). 3 contacts. Bayonet locking outside (mateable with locking inside). Contacts sold separately.
