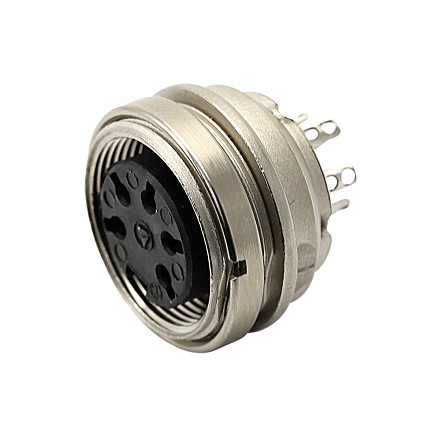

  6. T 3263 150 - M16 Rear mounting female receptacle with ring nut. 3 contacts Contacts sold separately.
T 3263 150 - M16 Rear mounting female receptacle with ring nut. 3 contacts Contacts sold separately.
T 3263 150 - M16 Rear mounting female receptacle with ring nut. 3 contacts Contacts sold separately.

T 3263 150 - M16 Rear mounting female receptacle with ring nut. 3 contacts Contacts sold separately.

$0.00
Female Receptacle
PART NUMBER: T3263150
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 3
  • Contact Resistance: < 5mΩ
  • Insulation Resistance: > 10(10) Ω
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Insertion/Withdrawal Force: 25 N
  • Operating Temperature: -40°C to +100°C
  • Current Rating: 10A
  • Termination: Crimp
  • Housing: Die cast, nickel plated
  • Protection: IP40
  • Mount: Rear
  • Locking: Screw
  • Insert: Thermoplastic
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Mating Part(s): T3262550,T3262150,T3260552,T3260556
  • Size: M16
Rear mounting female receptacle with ring nut (hex nut available upon request). 3 contacts. Contacts sold separately. Termination: solder or crimp.
