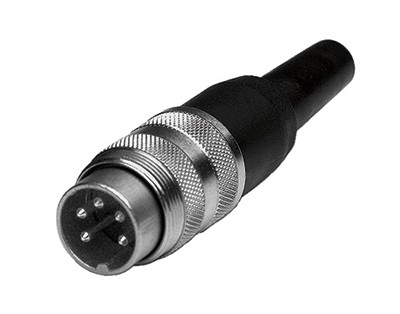

  6. T 3260 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 3 contacts, 4 - 6mm cable diameter Contacts sold separately.
T 3260 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 3 contacts, 4 - 6mm cable diameter Contacts sold separately.
T 3260 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 3 contacts, 4 - 6mm cable diameter Contacts sold separately.

T 3260 551 - M16 Male straight cable connector with internal strain relief and metal locking ring. 3 contacts, 4 - 6mm cable diameter Contacts sold separately.

$0.00
Male Cable Connector
PART NUMBER: T3260551
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 3
  • Contact Resistance: < 5mΩ
  • Insulation Resistance: > 10(10) Ω
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Insertion/Withdrawal Force: 25 N
  • Rated Voltage: 300V
  • Cable Diameter: 4 - 6mm
  • Operating Temperature: -40°C to +100°C
  • Current Rating: 10A
  • Termination: Crimp
  • Housing: Die cast, nickel plated
  • Protection: IP40
  • Locking: Screw
  • Version: Straight
  • Insert: Thermoplastic
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Mating Part(s): T3261551,T3261554,T3261556,T3261055
  • Size: M16
Male straight cable connector with internal strain relief and metal locking ring. 3 contacts, 4 - 6mm cable diameter. Screw locking according to IEC 61076-2-106. Contacts sold separately.
