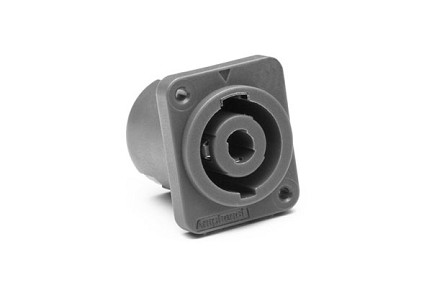

  7. SP-4-MDA-8 SP-4-MDA-8 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Thru Holes, Solder Tabs 3/16", Grey, Airtight, Single Pack. Comparable to PN# NL4MP-1
SP-4-MDA-8 SP-4-MDA-8 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Thru Holes, Solder Tabs 3/16
SP-4-MDA-8 SP-4-MDA-8 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Thru Holes, Solder Tabs 3/16', Grey, Airtight, Single Pack. Comparable to PN# NL4MP-1

SP-4-MDA-8 SP-4-MDA-8 4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Thru Holes, Solder Tabs 3/16", Grey, Airtight, Single Pack. Comparable to PN# NL4MP-1

$0.00
Connectors
PART NUMBER: SP-4-MDA-8
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Poles: 4
  • Contact Type: Socket
  • Gender: Female
  • Current Carrying Capacity: 20A
  • Voltage: 133V AC
  • Termination: Solder Tabs 3/16”
  • Max Wire Gauge: 12-16 AWG
  • Housing Material: PA66 GF30
  • Finish: Grey
  • IP Rating: IP20 / IP40 (in mated condition)
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Flammability Rating: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Mating Cycles: 5000
4 Pole Loudspeaker Chassis Mount, 'D' Type Flange, Thru Holes, Solder Tabs 3/16", Grey, Airtight, Single Pack. Comparable to PN# NL4MP-1
