Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
18-32 Position
JAM NUT RECEPTACLES

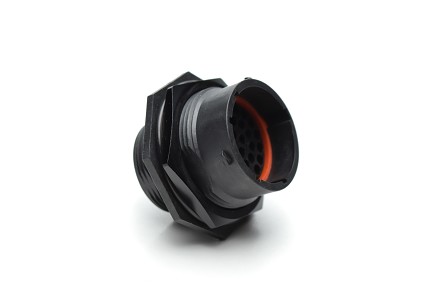

RTS718N32P03 Receptacle, jam nut, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS71832P
RTS718N32P03 Receptacle, jam nut, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS71832P
RTS718N32P03 Receptacle, jam nut, 32 positions, size 18, pin contact, silicone rubber seal. Comparable to PN #UTS71832P
$0.00
Receptacle
PART NUMBER:
RTS718N32P03
Datasheet
:
View / Download
3D Model
:
View/Download
32
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
32
Contact Pin or Socket:
pin
Contact size:
20
Amperage:
5A(stamped) or 7.5A (machined)
Volt:
250
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS18N32S03, RTS6BS18N32SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 32 Position, Male, Shell Size 18,
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Pin (Male)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MP20W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MP28W23F Size 20 Pin Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G10 Size 20 Pin Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G15 Size 20 Pin Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G30 Size 20 Pin Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MP28W23G5 Size 20 Pin Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS018DCG Dust cap for Receptacle, Size 18. Comparable to PN# UTS18DCG
REQUEST A QUOTE
RTS0L-18CG Back Shell size 18, Cable Range 10.0mm-18.0mm
REQUEST A QUOTE
RTS18CCRG Coding color ring, Green, size 18. Comparable to PN# UTS618CCRG
REQUEST A QUOTE
RTS18CCRR Coding color ring, Red, size 18. Comparable to PN# UTS618CCRR
REQUEST A QUOTE
RTS18CCRY Coding color ring, Yellow, size 18. Comparable to PN# UTS618CCRY
REQUEST A QUOTE
RTS6BS18N32S03 Straight plug with cord grip, 32 positions, size 18, socket contact, silicone rubber seal. Comparable to PN #UTS6JC1832S
REQUEST A QUOTE
RTS6BS18N32SHEC03 Straight plug with endcap, 32 positions, size 18, socket contact. Comparable to PN #UTS6GN1832S
REQUEST A QUOTE
RTS718N32PHEC03 Receptacle, jam nut, 32 positions, size 18, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS7GN1832P
REQUEST A QUOTE
SP20W1F Pin Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm², 22-20AWG, 5A. Compatible to part # SM20W3J
REQUEST A QUOTE
SP20W1G10 Pin Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G15 Pin Contact, Stamped, Size 20, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G30 Pin Contact, Stamped, Size 20, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W1G5 Pin Contact, Stamped, Size 20, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 5A
REQUEST A QUOTE
SP20W2F Size 20 Stamped & Formed Pin Contact, Gold Flash Plating, 5A, Wire Range 18-22AWG, 3 Tangs. 3,000 pcs Reel
REQUEST A QUOTE
SP20W2T Size 20 Pin Contact, Stamped, Tin over Nickel, 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 Tangs
REQUEST A QUOTE
SP20WG10 Size 20 Pin Contact, Stamped, Gold 10µ", 5A, Wire Range .34-.50mm², 20-22 AWG,with 3 prongs
REQUEST A QUOTE
