Home
Our Product Lines
Waterproof Connectors
Ecomate Aquarius IP69k
23 Positions 13A / 500V

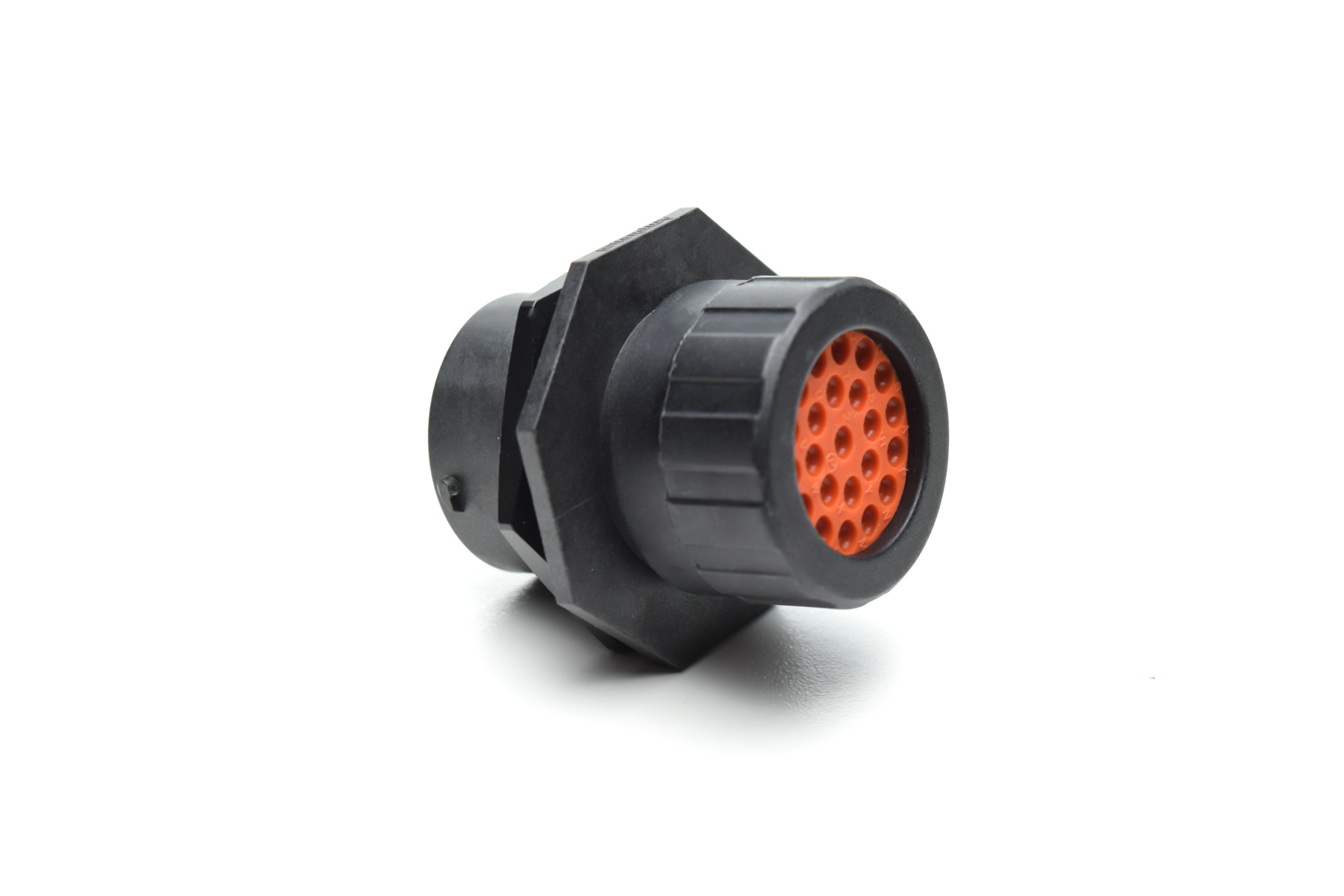

JAM NUT RECEPTACLE
RTS718N23PHEC03 Jam Nut Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS7GN1823P
RTS718N23PHEC03 Jam Nut Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS7GN1823P
RTS718N23PHEC03 Jam Nut Receptacle, 23 positions, size 18, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS7GN1823P
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS718N23PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
23
Circular
69
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Contacts:
23
Contact size:
16
Amperage:
13A
Voltage:
500
Contact Gender:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Gender :
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS718N23S03, RTS718N23SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 23 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
