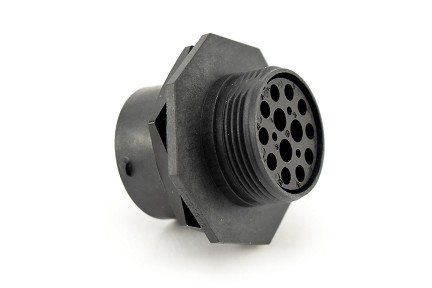

RTS718N103P 13 (10+3 Coax) Positions, Jam Nut Receptacle,Shell Size 18, Pin
RTS718N103P 13 (10+3 Coax) Positions, Jam Nut Receptacle,Shell Size 18, Pin

RTS718N103P 13 (10+3 Coax) Positions, Jam Nut Receptacle,Shell Size 18, Pin

$0.00
Jam Nut Receptacle
PART NUMBER: RTS718N103P
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Contacts: 13 (10+3)
  • Contact size: 16 (1.5mm), 12 (2.5mm coax)
  • Amperage: 13A & 1A
  • Wire Range: 14-26AWG & Coax RG316/U
  • Voltage Rating: 500
  • Contact Pin or Socket: Pin
  • Housing Material: Thermoplastic UL94 V-0
  • IP Rating: IP67 and IP69K (in mated condition)
  • Temperature Range: -40°C to +105°C
  • Rohs Compliant: TRUE
  • Gender: Male
  • Mating Parts: RTS1BS18N103S*
Receptacle, Jam Nut, 13 (10+3 Coax) Position, Male, Shell Size 18

Related Items

20-80646 Coax Contact Alignment Collar
20-80646 Coax Contact Alignment Collar
REQUEST A QUOTE
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MIM-K2.5Y RG316/U Contact, Coax, Socket (Requires coax alignment collar to install contacts in connector), 1A
MIM-K2.5Y RG316/U Contact, Coax, Socket (Requires coax alignment collar to install contacts in connector), 1A
REQUEST A QUOTE
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ", Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
REQUEST A QUOTE
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23S Size 16 Socket Contact, Machined, Silver Plated, 13A, Wire Range .75-1.5mm², 18-16 AWG
MS16M23S Size 16 Socket Contact, Machined, Silver Plated, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23T Size 16 Socket Contact, Machined, Tin Plated, 13A, Wire Range .75-1.5mm², 18-16 AWG
MS16M23T Size 16 Socket Contact, Machined, Tin Plated, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
QXRT16-COAX Size 16 extraction tool for MIM-2J.5Y,MIM-K2.5Y pns only
QXRT16-COAX Size 16 extraction tool for MIM-2J.5Y,MIM-K2.5Y pns only
REQUEST A QUOTE
RTS018DCG Dust cap for Receptacle, Size 18. Comparable to PN# UTS18DCG
RTS018DCG Dust cap for Receptacle, Size 18. Comparable to PN# UTS18DCG
REQUEST A QUOTE
RTS6BS18N103S03-TW 13 (10+3 Coax) Positions, Plug, Shell Size 18, Socket with Heavy-Duty Coupling Nut, Silicone Seal
RTS6BS18N103S03-TW 13 (10+3 Coax) Positions, Plug, Shell Size 18, Socket with Heavy-Duty Coupling Nut, Silicone Seal
REQUEST A QUOTE
RTS718N103P03 13 (10+3 Coax) Positions, Jam Nut Receptacle, Shell Size 18, Pin, Silicone Seal
RTS718N103P03 13 (10+3 Coax) Positions, Jam Nut Receptacle, Shell Size 18, Pin, Silicone Seal
REQUEST A QUOTE
SS14M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
SS14M2F Size 16 Socket Contact, Stamped, Gold Flash over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2G10 Size 16 Socket Contact, Stamped, Gold 10µ
SS14M2G10 Size 16 Socket Contact, Stamped, Gold 10µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2G15 Size 16 Socket Contact, Stamped, Gold 15µ
SS14M2G15 Size 16 Socket Contact, Stamped, Gold 15µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 tangs
REQUEST A QUOTE
SS14M2G30 Size 16 Socket Contact, Stamped, Gold 30µ
SS14M2G30 Size 16 Socket Contact, Stamped, Gold 30µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 tangs
REQUEST A QUOTE
SS14M2G5 Size 16 Socket Contact, Stamped, Gold 5µ
SS14M2G5 Size 16 Socket Contact, Stamped, Gold 5µ" over Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
SS14M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
SS14M2N Size 16 Socket Contact, Stamped, Nickel, 13A, Wire Range 2.0-2.5mm², 16-14 AWG, with 3 Tangs
REQUEST A QUOTE
