JAM NUT RECEPTACLES

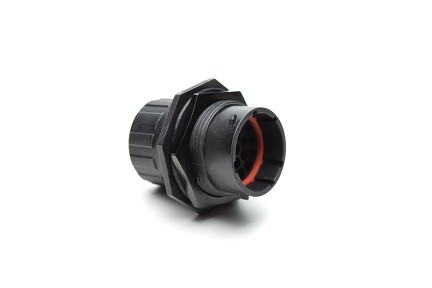

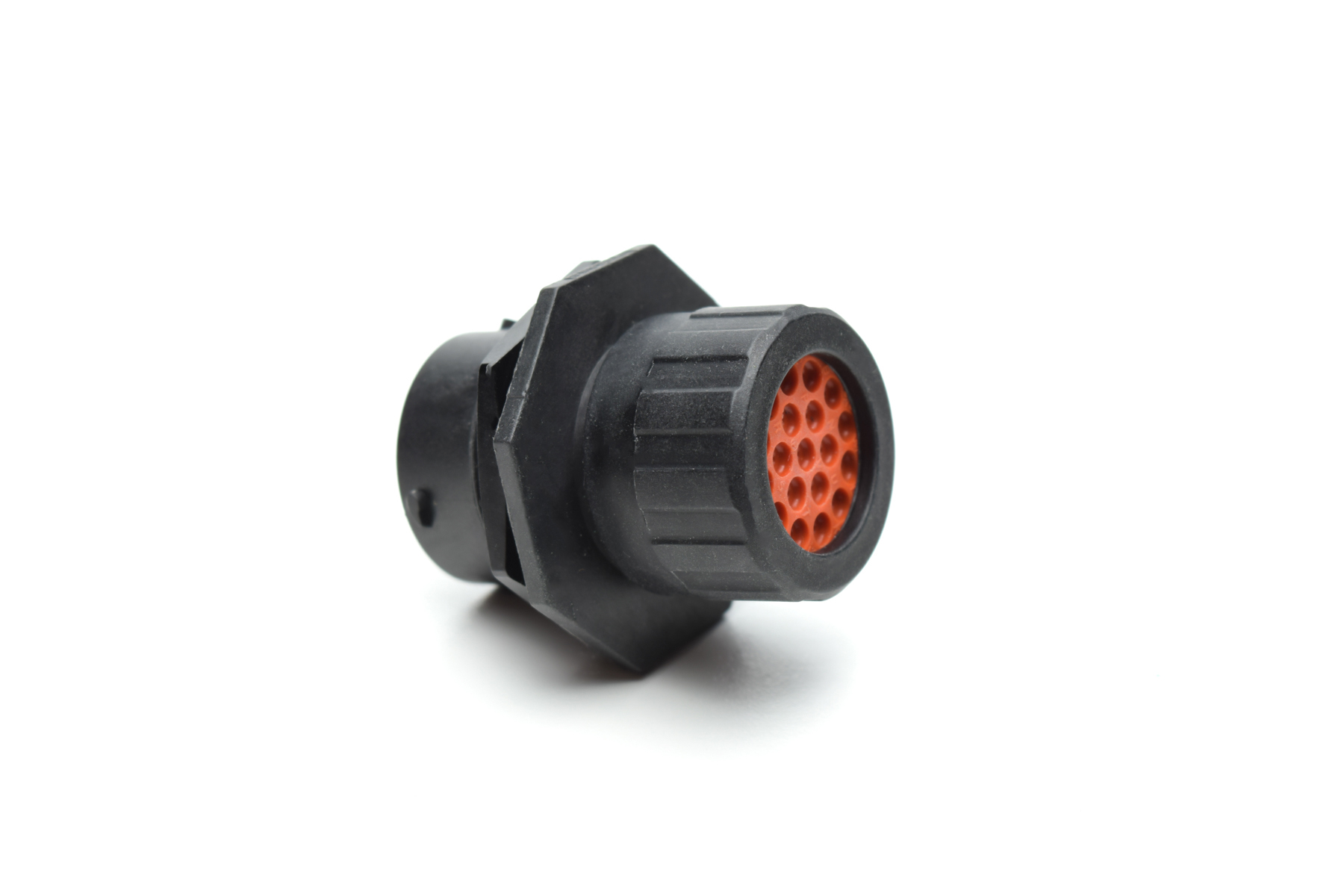

RTS716N19PHEC03 Jam Nut Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
RTS716N19PHEC03 Jam Nut Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
RTS716N19PHEC03 Jam Nut Receptacle, 19 positions, size 16, pin contact, silicone rubber seal, endcap
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS716N19PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
19
Circular
69
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
19
Contact size:
16
Amperage:
13A
Voltage:
500
Contact Gender:
Pin
IP Rating:
IP67 / IP69k (in mated condition)
Salt Spray:
>500h
Gender :
Male
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS16N19S03,RTS6BS16N19SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 19 Position, Male, Shell Size 16, Silicone Seal, and End Cap with Individual Wire Sealing
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
