ecomate Connectors
ecomate Aquarius
16-9 (4+5) Position Mix
JAM NUT RECEPTACLES

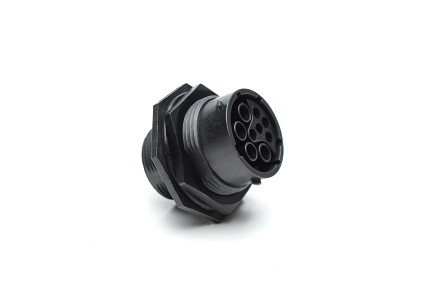

RTS716N09S03 Receptacle, jam nut, 9 (4+5) positions, size 16, socket contact, silicone rubber seal
RTS716N09S03 Receptacle, jam nut, 9 (4+5) positions, size 16, socket contact, silicone rubber seal
RTS716N09S03 Receptacle, jam nut, 9 (4+5) positions, size 16, socket contact, silicone rubber seal
$0.00
Receptacle
PART NUMBER:
RTS716N09S03
Datasheet
:
View / Download
3D Model
:
View/Download
9
Circular
69
23
Plastic
SPECIFICATIONS:
Shell Size:
16
No. of Contacts:
9 (4+5)
Contact Pin or Socket:
Socket
Contact size:
2.5mm, 16
Amperage:
23A & 13A
Volt:
500
IP Rating:
IP67 / IP69k (in mated condition)
Rohs Compliant:
Yes
Salt Spray:
>500h
Gender:
Female
Temperature Range:
-40 to 125°C
Housing Material:
Thermoplastic UL94 V-0
Mating Parts:
RTS6BS16N9P03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 9 (4+5) Position, Female, Shell Size 16, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Socket (Female)
