Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-12 (4+8) Position
JAM NUT RECEPTACLES

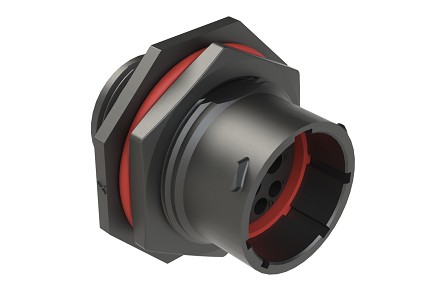

RTS714NE12P Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14. Comparable to PN# UTS714E12P
RTS714NE12P Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14. Comparable to PN# UTS714E12P
RTS714NE12P Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14. Comparable to PN# UTS714E12P
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS714NE12P
Datasheet
:
View / Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
12 (4+8)
Contact Size(s):
16,20
Contact Type (Pin or Socket):
Pin
Gender:
Male
Wire Range:
14-24AWG (2.0-3.2mm²), 30-20 AWG (.05-.50mm²)
Amperage:
13A, 5A
Voltage:
500V
Housing Material:
Thermoplastic
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +105°C
Rohs Compliant:
Yes
Termination Technique:
Crimp
Salt Spray:
>500h
Mating Part(s)*:
RTS6BS14NE12P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 12 (4+8) Position, Male, Shell Size 14. Comparable to PN# UTS714E12P
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Pin (Male)
