JAM NUT RECEPTACLES

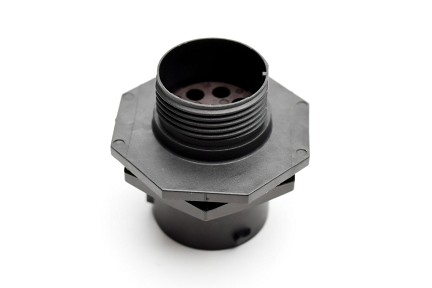

RTS714N8S03 Receptacle, jam nut, 8 positions, size 14, socket contact, silicone rubber seal
RTS714N8S03 Receptacle, jam nut, 8 positions, size 14, socket contact, silicone rubber seal
RTS714N8S03 Receptacle, jam nut, 8 positions, size 14, socket contact, silicone rubber seal
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS714N8S03
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
13
Plastic
SPECIFICATIONS:
Amperage:
13A
Contact Size:
16
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
8
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
14
Volts:
500
Mating Parts:
RTS6BS14N8P03, RTS6BS14N8PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 8 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Socket (Female)
