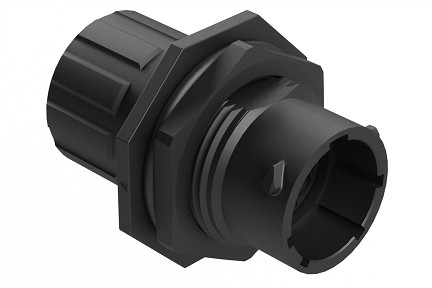

RTS712N8PHEC03R Receptacle, Jam Nut, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS712N8PHEC03R Receptacle, Jam Nut, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS712N8PHEC03R Receptacle, Jam Nut, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS712N8PHEC03R
Datasheet
:
View / Download
8
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
8
Contact Size:
16
Wire Range:
14-24AWG
Contact Pin or Socket:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Mating Part(s)*:
RTS6BS12N8S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut~Reduced Diameter Seal|Connectors~Pin (Male)
Related Items
MP14M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP14M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MP16M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP16M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MP20M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP20M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MP24M23F Size 16 Pin Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MP24M23G10 Size 16 Pin Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G15 Size 16 Pin Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G30 Size 16 Pin Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MP24M23G5 Size 16 Pin Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
RTS6BS12N8S03 Plug, 8 Position, Female, Shell Size 12, with Silicone Seal. Compatible to part # UTS6JC128S
REQUEST A QUOTE
RTS6BS12N8SHEC03 Plug, 8 Position, Female, Shell Size 12, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC128S
REQUEST A QUOTE
RTS6BS12N8SHEC03R Plug, 8 Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
REQUEST A QUOTE
SP14M1F Pin Contact, Stamped, Size 16, Gold Flash, Wire Range 2.0-2.5mm², 14AWG, 13A. Compatible to part # SM14M1D70, 192990-2620
REQUEST A QUOTE
SP14M1G10 Pin Contact, Stamped, Size 16, Gold 10µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SP14M1G15 Pin Contact, Stamped, Size 16, Gold 15µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SP14M1G30 Pin Contact, Stamped, Size 16, Gold 30µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SP14M1G5 Pin Contact, Stamped, Size 16, Gold 5µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SP16M1F Pin Contact, Stamped, Size 16, Gold Flash, Wire Range .75-1.5mm², 18-16AWG, 13A. Compatible to part # SM16M11D70, 192990-2630
REQUEST A QUOTE
SP16M1G10 Pin Contact, Size 16, Stamped, Gold 10µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SP16M1G15 Pin Contact, Stamped, Size 16, Gold 15µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SP16M1G30 Pin Contact, Stamped, Size 16, Gold 30µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SP16M1G5 Pin Contact, Stamped, Size 16, Gold 5µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SP20M1F Pin Contact, Stamped, Size 16, Gold Flash, Wire Range .34-.50mm², 22-20AWG, 13A. Compatible to part # SM20M1D70, 192990-2640
REQUEST A QUOTE
SP20M1G10 Pin Contact, Stamped, Size 16, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SP20M1G15 Pin Contact, Stamped, Size 16, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SP20M1G30 Pin Contact, Stamped, Size 16, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SP20M1G5 Pin Contact, Size 16, Stamped, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SP24M1F Pin Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², .14-.25mm², 26-24AWG, 13A. Compatible to part # SM24M1D70, 192990-2650
REQUEST A QUOTE
SP24M1G10 Pin Contact, Stamped, Size 16, Gold 10µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SP24M1G15 Pin Contact, Stamped, Size 16, Gold 15µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SP24M1G30 Pin Contact, Stamped, Size 16, Gold 30µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SP24M1G5 Pin Contact, Stamped, Size 16, Gold 5µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
