12-4 Position
JAM NUT RECEPTACLES

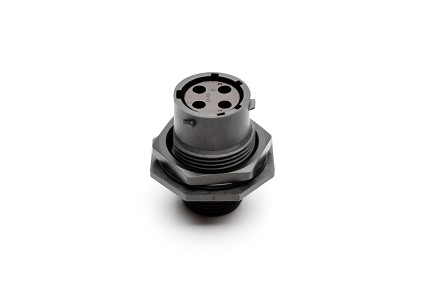

RTS712N4S03 Receptacle, jam nut, 4 positions, size 12, socket contact, silicone rubber seal. Intermateable with part # UTS7124S. Comparable to PN #UTS7124S
RTS712N4S03 Receptacle, jam nut, 4 positions, size 12, socket contact, silicone rubber seal. Intermateable with part # UTS7124S. Comparable to PN #UTS7124S
RTS712N4S03 Receptacle, jam nut, 4 positions, size 12, socket contact, silicone rubber seal. Intermateable with part # UTS7124S. Comparable to PN #UTS7124S
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS712N4S03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Plastic
SPECIFICATIONS:
Amperage:
13A
Contact Size:
16
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
4
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
12
Volts:
500
Mating Parts:
RTS6BS12N4P03, RTS6BS12N4PHE03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 4 Position, Female, Shell Size 12, with Silicone Seal
View/Download
