Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
10-6 Position
JAM NUT RECEPTACLES

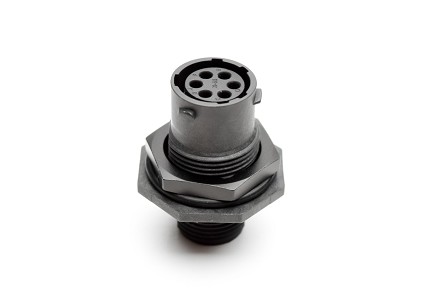

RTS710N6S03 Receptacle, jam nut, 6 positions, size 10, socket contact, silicone rubber seal. Intermateable with part # UTS7106S. Comparable to PN #UTS7106S
RTS710N6S03 Receptacle, jam nut, 6 positions, size 10, socket contact, silicone rubber seal. Intermateable with part # UTS7106S. Comparable to PN #UTS7106S
RTS710N6S03 Receptacle, jam nut, 6 positions, size 10, socket contact, silicone rubber seal. Intermateable with part # UTS7106S. Comparable to PN #UTS7106S
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS710N6S03
Datasheet
:
View / Download
3D Model
:
View/Download
6
Circular
69
7.5
Plastic
SPECIFICATIONS:
Amperage:
7.5A/5.0A
Contact Size:
20
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
6
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
10
Volts:
250
Mating Parts:
RTS6BS10N6P03, RTS6BS10N6PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 6 Position, Female, Shell Size 10, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
250
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Socket (Female)
Related Items
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3957 Crimp Die for Stamped & Formed Contact
REQUEST A QUOTE
MFX-3958 Hand Tool, Stamped & Formed Contact, Size 20, 20-28AWG
REQUEST A QUOTE
MS20W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS24M23F Size 20 Socket Contact, Machined, Gold Flash, 13A, Wire Range .14-.25mm², 24-26 AWG
REQUEST A QUOTE
MS24M23G10 Size 20 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G15 Size 20 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G30 Size 20 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24M23G5 Size 20 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .14-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G10 Size 20 Socket Contact, Machined, Gold 10µ",7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G15 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS24W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .13-.25mm², 26-24 AWG
REQUEST A QUOTE
MS28W23F Size 20 Socket Contact, Machined, Gold Flash, 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G10 Size 20 Socket Contact, Machined, Gold 10µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G15 Size 20 Socket Contact, Machined, Gold 15µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G30 Size 20 Socket Contact, Machined, Gold 30µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
MS28W23G5 Size 20 Socket Contact, Machined, Gold 5µ", 7.5A, Wire Range .05-.08mm², 30-28 AWG
REQUEST A QUOTE
QXRT20 Contact Extraction Tool, #20 (Ø 1.0) Contact. Comparable to PN# RX20D44
REQUEST A QUOTE
RTS010DCG Dust cap for Receptacle, Size 10. Compatible to part # RTS010DCG
REQUEST A QUOTE
RTS10CCRG Coding color ring, Green, size 10. Compatible to part # UTS610CCRG
REQUEST A QUOTE
RTS10CCRR Coding color ring, Red, size 10. Compatible to part # UTS610CCRR
REQUEST A QUOTE
RTS10CCRY Coding color ring, Yellow, size 10. Compatible to part # UTS610CCRY
REQUEST A QUOTE
RTS6BS10N6P03 Plug, 6 Position, Male, Shell Size 10, with Silicone Seal. Compatible to part # UTS6JC106P
REQUEST A QUOTE
RTS6BS10N6PHEC03 Plug, 6 Position, Male, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC106P
REQUEST A QUOTE
SS20W1F Socket Contact, Stamped, Size 20, Gold Flash, Wire Range .34-.50mm² 20-22AWG, 5A. Compatible to part # SC20W3J
REQUEST A QUOTE
SS20W1G10 Socket Contact, Stamped, Size 20, Gold 10µ", Wire Range .34-.50mm² .34-.50mm² 22-20AWG, 5A
REQUEST A QUOTE
