  7. RTS710N3W3P03 Receptacle, Jam Nut, 6 (3+3) Position, Male, Shell Size 10, with Silicone Seal. Comparable to PN# UTS7103W3P

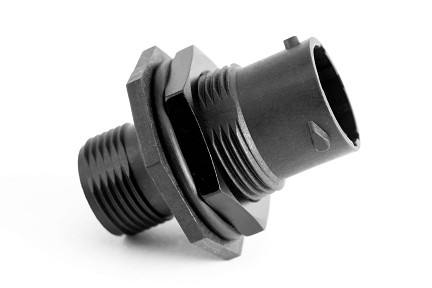

RTS710N3W3P03 Receptacle, Jam Nut, 6 (3+3) Position, Male, Shell Size 10, with Silicone Seal. Comparable to PN# UTS7103W3P
RTS710N3W3P03 Receptacle, Jam Nut, 6 (3+3) Position, Male, Shell Size 10, with Silicone Seal. Comparable to PN# UTS7103W3P

RTS710N3W3P03 Receptacle, Jam Nut, 6 (3+3) Position, Male, Shell Size 10, with Silicone Seal. Comparable to PN# UTS7103W3P

$0.00
Jam Not Receptacle
PART NUMBER: RTS710N3W3P03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 10
  • Number of Contacts: 6 (3+3)
  • Contact Size(s): 16,20
  • Amperage: 13A ,5A
  • Wire Range: 14-24 AWG
  • Voltage Rating: 500
  • Contact Pin or Socket: Pin
  • Gender: Male
  • Housing Material: Thermoplastic
  • IP Rating: IP67 and IP69K (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Insulation Resistance: 5000 MEGOHMS Min
  • Mating Part(s)* : RTS6BS10N3W3S*
Receptacle, Jam Nut, 6 (3+3) Position, Male, Shell Size 10, with Silicone Seal. Comparable to PN# UTS7103W3P
