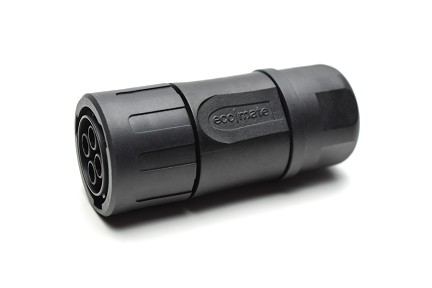

  7. RTS6BS16N4S03 Straight plug with cord grip, 4 positions, size 16, socket contact, silicone rubber seal
RTS6BS16N4S03 Straight plug with cord grip, 4 positions, size 16, socket contact, silicone rubber seal
RTS6BS16N4S03 Straight plug with cord grip, 4 positions, size 16, socket contact, silicone rubber seal

RTS6BS16N4S03 Straight plug with cord grip, 4 positions, size 16, socket contact, silicone rubber seal

$0.00
Plug
PART NUMBER: RTS6BS16N4S03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 16
  • No. of Contacts: 4
  • Contact Pin or Socket: Socket
  • Contact size: 8
  • Amperage: 45A
  • Volt: 600
  • IP Rating: IP67 / IP69k (in mated condition)
  • Rohs Compliant: Yes
  • Salt Spray: >500h
  • Gender: Female
  • Temperature Range: -40 to 125°C
  • Housing Material: Thermoplastic UL94 V-0
  • Mating Parts: RTS716N4P03, RTS016N4P03
Plug, 4 Position, Female, Shell Size 16, with Silicone Seal

Related Items

CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
REQUEST A QUOTE
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
MS10A23S 3.6mm Socket Contact, Silver Plated, Machined, 45A, Wire Range 12-10 AWG
REQUEST A QUOTE
RTS016N4P03 Receptacle, square flange, 4 positions, size 16, pin contact, silicone rubber seal
RTS016N4P03 Receptacle, square flange, 4 positions, size 16, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
RTS16CCRG Coding color ring, Green, size 16. Comparable to PN# UTS616CCRG
REQUEST A QUOTE
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
RTS16CCRR Coding color ring, Red, size 16. Comparable to PN# UTS616CCRR
REQUEST A QUOTE
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
RTS16CCRY Coding color ring, Yellow, size 16. Comparable to PN# UTS616CCRY
REQUEST A QUOTE
RTS616NDCG Dust cap for Plug, Size 16. Comparable to PN# UTS616DCG
RTS616NDCG Dust cap for Plug, Size 16. Comparable to PN# UTS616DCG
REQUEST A QUOTE
RTS6BS16N4SHEC03 Straight plug with endcap, 4 positions, size 16, socket contact
RTS6BS16N4SHEC03 Straight plug with endcap, 4 positions, size 16, socket contact
REQUEST A QUOTE
RTS716N4P03 Receptacle, jam nut, 4 positions, size 16, pin contact, silicone rubber seal
RTS716N4P03 Receptacle, jam nut, 4 positions, size 16, pin contact, silicone rubber seal
REQUEST A QUOTE
