Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-7 Position
PLUGS

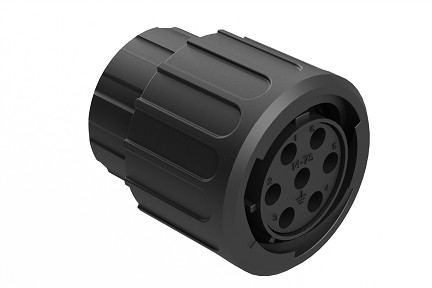

RTS6BS14N7SHEC03R Plug, 7 Position, Female, End Cap, Shell Size 14, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS6BS14N7SHEC03R Plug, 7 Position, Female, End Cap, Shell Size 14, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS6BS14N7SHEC03R Plug, 7 Position, Female, End Cap, Shell Size 14, Silicone Seal and End Cap with Individual Reduced Wire Sealing
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS6BS14N7SHEC03R
Datasheet
:
View / Download
7
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
7
Contact Size:
16
Wire Range:
14-24AWG
Contact Pin or Socket:
Socket
Gender:
Female
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Mating Part(s)*:
RTS014N7P*RTS714N7P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 7 Position, Female, End Cap, Shell Size 14, Silicone Seal and End Cap with Individual Reduced Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
500
Connectors~Plugs~Reduced Diameter Seal|Connectors~Socket (Female)
