14-4 (2+2) Position Mix
PLUGS

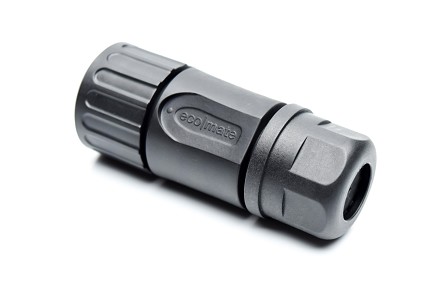

RTS6BS14N2S03 Straight plug with cord grip,4 (2+2) positions, size 14, socket contact, silicone rubber seal
RTS6BS14N2S03 Straight plug with cord grip,4 (2+2) positions, size 14, socket contact, silicone rubber seal
RTS6BS14N2S03 Straight plug with cord grip,4 (2+2) positions, size 14, socket contact, silicone rubber seal
$0.00
Plug
PART NUMBER:
RTS6BS14N2S03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
23
Plastic
SPECIFICATIONS:
Amperage:
23A & 13A
Contact Size:
16, 2.5mm
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
4 (2+2)
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
14
Volts:
500
Mating Parts:
RTS714N2P03, RTS014N2P03, RTS014N2PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 (2+2) Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Plugs|Connectors~Socket (Female)
Related Items
CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
REQUEST A QUOTE
CA-4020-59 Sealing Plug, White, Size 20 (1.0mm), Size 16 (1.6mm)
REQUEST A QUOTE
MFX-3954 Hand Tool, Stamped & Formed Contact, Size 16, 20-14AWG
REQUEST A QUOTE
MFX-3962 Hand Tool, Stamped & Formed Contact, 2.5 mm
REQUEST A QUOTE
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ", Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
REQUEST A QUOTE
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
QXRT12S Extraction Tool 2.5mm Contact
REQUEST A QUOTE
QXRT16 Contact Extraction Tool, #16 (Ø 1.6) Contact. Compatible to part # RX2025GE1
REQUEST A QUOTE
RTS014N2P03 Receptacle, square flange, 4 (2+2) positions, size 14, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS014N2PHEC03 Receptacle, square flange, 4 (2+2) positions, size 14, pin contact, silicone rubber seal, endcap
REQUEST A QUOTE
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
REQUEST A QUOTE
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
REQUEST A QUOTE
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
REQUEST A QUOTE
RTS1BS14N2P03 Receptacle, Inline, 4 (2+2) positions, size 14, pin contact, silicone rubber seal
REQUEST A QUOTE
RTS614NDCG Dust cap for Plug, Size 14. Compatible to part # UTS614DCG
REQUEST A QUOTE
RTS6BS14N2SHEC03 Straight plug with end cap, 4 (2+2) positions, size 14, socket contact, endcap
REQUEST A QUOTE
RTS714N2P03 Receptacle, jam nut, 4 (2+2) positions, size 14, pin contact, silicone rubber seal
REQUEST A QUOTE
SS12A1T 2.5mm Stamped & Formed Socket Contact, Tin Plating, 23A, Wire Range 14-12 AWG. Reel of 1,000
REQUEST A QUOTE
SS14M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range 2.0-2.5mm², 14 AWG, 13A. Compatible to part # SC14M1D70, 192990-2660. Comparable to PN# SC14M1D70
REQUEST A QUOTE
SS14M1G10 Size 16 Stamped & Formed Socket Contact, 10?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G15 Size 16 Stamped & Formed Socket Contact, 15?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G30 Size 16 Stamped & Formed Socket Contact, 30?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G5 Socket Contact, Stamped, Size 16, Gold 5µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SS16M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .75-1.5mm², 18-16AWG, 13A. Compatible to part # SC16M11D70
REQUEST A QUOTE
SS16M1G10 Socket Contact, Contact, Size 16, Stamped, 10µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
