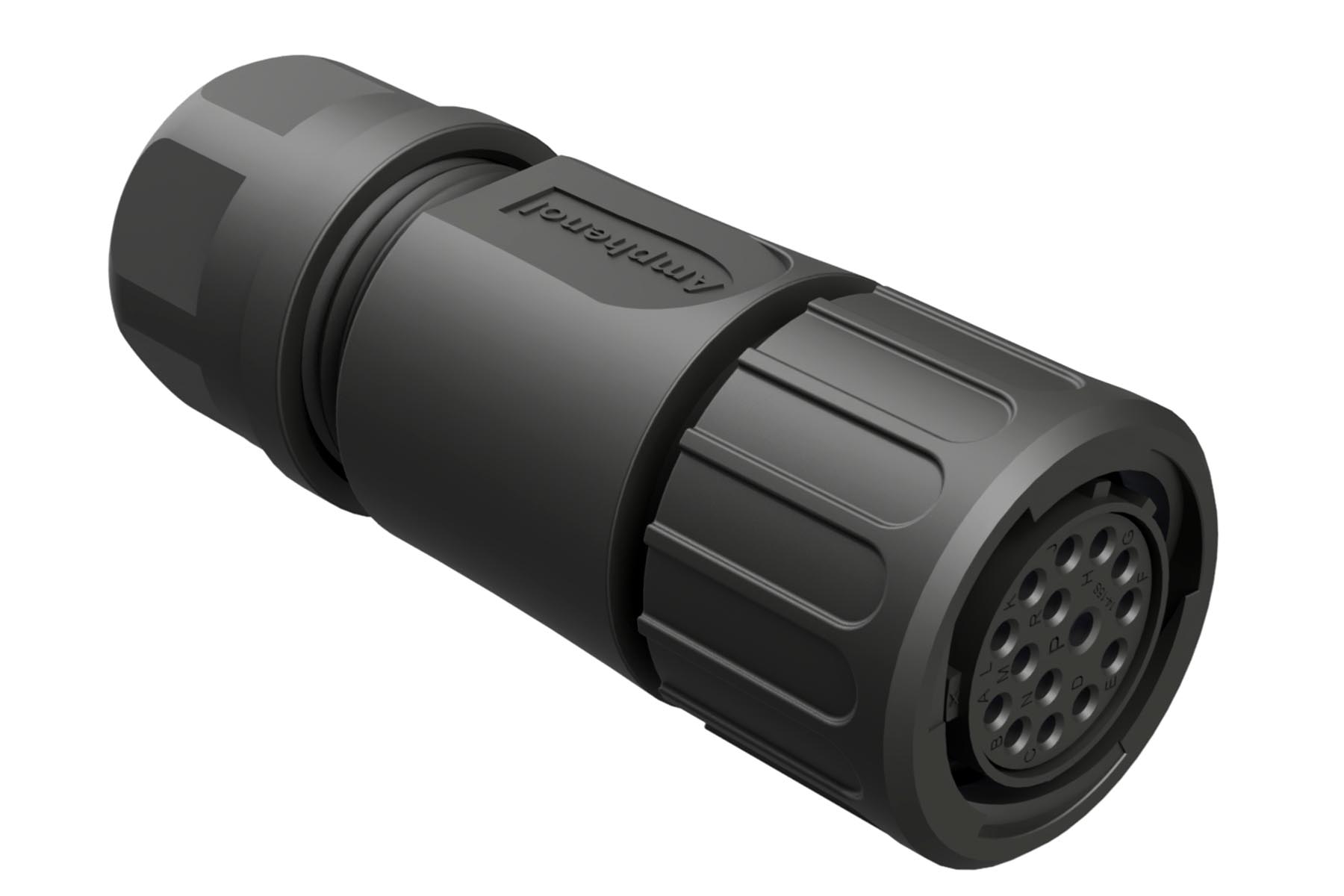

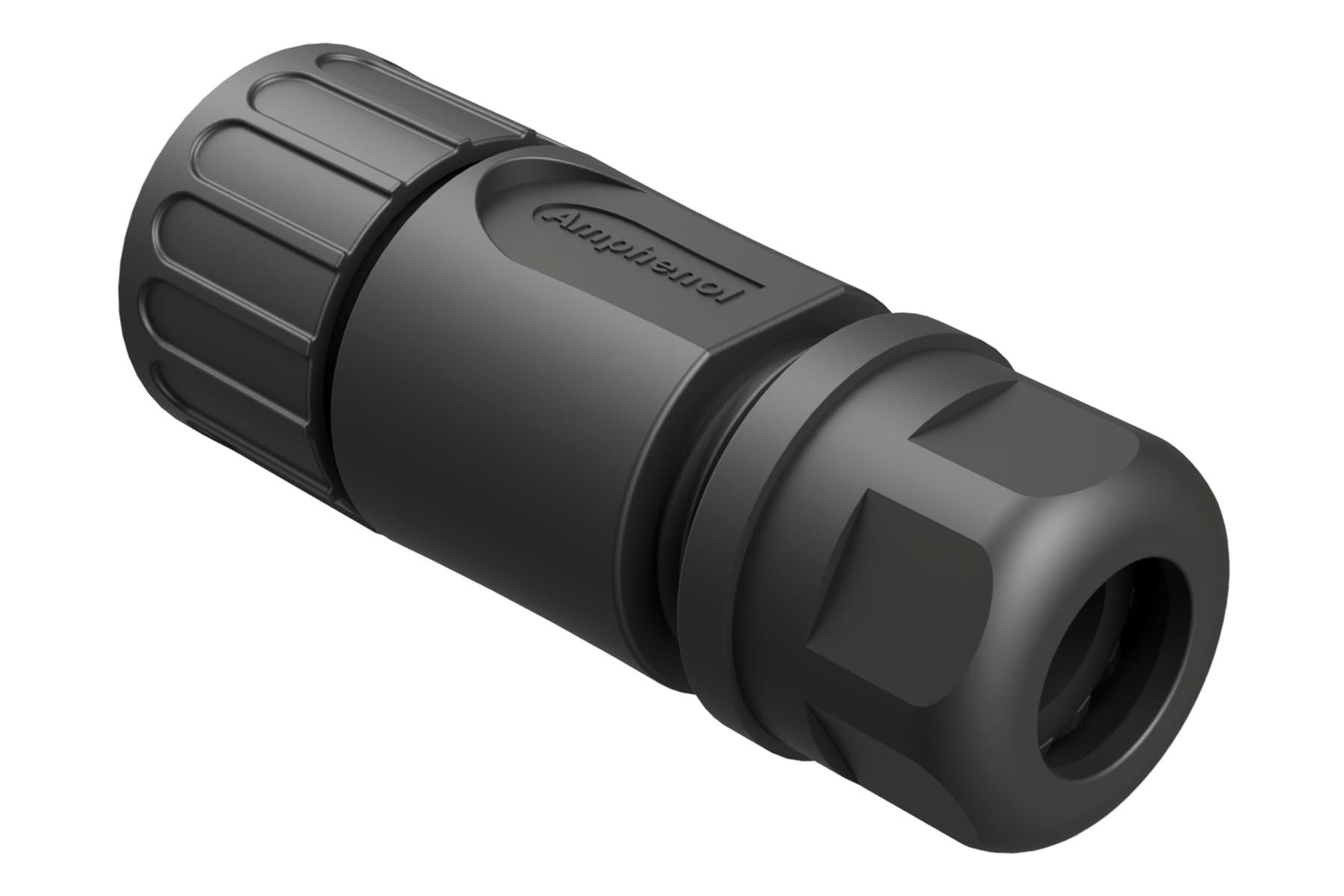

RTS6BS14N15S Plug, 15 (1+14) Position, Female, Shell Size 14. Comparable to PN# UTS6JC14E15S
RTS6BS14N15S Plug, 15 (1+14) Position, Female, Shell Size 14. Comparable to PN# UTS6JC14E15S

RTS6BS14N15S Plug, 15 (1+14) Position, Female, Shell Size 14. Comparable to PN# UTS6JC14E15S

$0.00
Plug
PART NUMBER: RTS6BS14N15S
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 14
  • Number of Contacts: 15 (1+14)
  • Contact Size: 16,20
  • Contact Type (Pin or Socket): Socket
  • Gender: Female
  • Contact Type: Socket
  • Amperage: 13A, 5A
  • Wire Range: 14-24AWG (2.0-3.2mm²), 30-20 AWG (.05-.50mm²)
  • Voltage: 500V
  • Housing Material: Thermoplastic
  • IP Rating: IP67 & IP69K (in mated condition)
  • Temperature Range: -40°C to +105°C
  • Rohs Compliant: Yes
  • Termination Technique: Crimp
  • Salt Spray: >500h
  • Mating Part(s)*: RTS014N15P*, RTS714N15P*, RTS1BS14N15P*
Plug, 15 (1+14) Position, Female, Shell Size 14. Comparable to PN# UTS6JC14E15S
