Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
12-4 Position
PLUGS

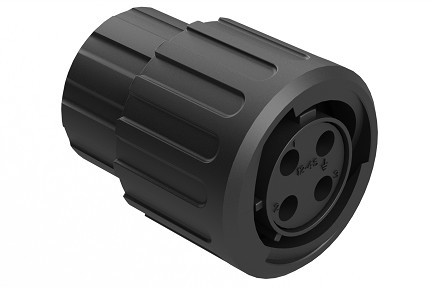

RTS6BS12N4SHEC03R Plug, 4 Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS6BS12N4SHEC03R Plug, 4 Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
RTS6BS12N4SHEC03R Plug, 4 Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
$0.00
Plug
PART NUMBER:
RTS6BS12N4SHEC03R
Datasheet
:
View / Download
4
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
4
Contact Size:
16
Wire Range:
14-24AWG
Contact Pin or Socket:
Socket
Gender:
Female
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67 & IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Mating Part(s)*:
RTS012N4P*RTS712N4P
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
Energy,Power,Robotics,Machine tools,Building Automation & Control,Instumentation Measurement,Off Road,Mining,Railway,Telecom,Data infrastructure
EcoMate~Aquarius
500
Connectors~Plugs~Reduced Diameter Seal|Connectors~Socket (Female)
Related Items
MS14M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G30 Size 16 Socket Contact, Machined, Gold 30µ", Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS14M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range 2.0-2.5mm², 14 AWG
REQUEST A QUOTE
MS16M23F Size 16 Socket Contact, Machined, Gold Flash, 13A, Wire Range .75-1.5mm², 16-18 AWG
REQUEST A QUOTE
MS16M23G10 Size 16 Socket Contact, Machined, Gold 10µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G15 Size 16 Socket Contact, Machined, Gold 15µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS16M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .75-1.5mm², 18-16 AWG
REQUEST A QUOTE
MS20M23F Socket Contact, Machined, Gold Flash, 13A, Wire Range .34-.50mm², 20-22 AWG
REQUEST A QUOTE
MS20M23G10 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G15 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G30 Size 16 Socket Contact, Machined, Gold 30µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
MS20M23G5 Size 16 Socket Contact, Machined, Gold 5µ", 13A, Wire Range .34-.50mm², 22-20 AWG
REQUEST A QUOTE
RTS012N4P03 Receptacle, square flange, 4 positions, size 12, pin contact, silicone rubber seal. Comparable to PN #UTS0124P
REQUEST A QUOTE
RTS012N4PHEC03R Receptacle, Square Flange, 4 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
REQUEST A QUOTE
RTS1BS12N4P03 Receptacle, Inline, 4 positions, size 12, pin contact, silicone rubber seal. Comparable to PN #UTS1JC124P
REQUEST A QUOTE
RTS1BS12N4PHEC03R Receptacle, Inline, 4 Position, Male, Shell Size 12, and End Cap with Individual Reduced Diameter Wire Sealing
REQUEST A QUOTE
RTS1BS12N4PHECR Receptacle, Inline, Male, Shell Size 12, and End Cap with Individual Reduced Diameter Wire Sealing, Range 14-24AWG
REQUEST A QUOTE
RTS712N4P03 Receptacle, jam nut, 4 positions, size 12, pin contact, silicone rubber seal. Intermateable with part # UTS7124P. Comparable to PN #UTS7124P
REQUEST A QUOTE
RTS712N4PHEC03R Receptacle, Jam Nut, 4 Position, Male, Shell Size 12, Silicone Seal and End Cap with Individual Reduced Wire Sealing
REQUEST A QUOTE
SS14M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range 2.0-2.5mm², 14 AWG, 13A. Compatible to part # SC14M1D70, 192990-2660. Comparable to PN# SC14M1D70
REQUEST A QUOTE
SS14M1G10 Size 16 Stamped & Formed Socket Contact, 10?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G15 Size 16 Stamped & Formed Socket Contact, 15?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G30 Size 16 Stamped & Formed Socket Contact, 30?" Gold Plating, 13A, Wire Range 14-16AWG. Reel of 3,000
REQUEST A QUOTE
SS14M1G5 Socket Contact, Stamped, Size 16, Gold 5µ", Wire Range 2.0-2.5mm², 14AWG, 13A
REQUEST A QUOTE
SS16M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .75-1.5mm², 18-16AWG, 13A. Compatible to part # SC16M11D70
REQUEST A QUOTE
SS16M1G10 Socket Contact, Contact, Size 16, Stamped, 10µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G15 Socket Contact, Size 16, Stamped, Gold 15µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS16M1G5 Socket Contact, Stamped, Size 16, Gold 5µ", Wire Range .75-1.5mm², 18-16AWG, 13A
REQUEST A QUOTE
SS20M1F Socket Contact, Size 16, Stamped, Gold Flash, Wire Range .34-.50mm², 20-22AWG, 13A. Compatible to part # SC20M1D70
REQUEST A QUOTE
SS20M1G10 Socket Contact, Size 16, Stamped, Gold 10µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS20M1G5 Socket Contact, Size 16, Stamped, Gold 5µ", Wire Range .34-.50mm², 22-20AWG, 13A
REQUEST A QUOTE
SS24M1F Socket Contact, Stamped, Size 16, Gold Flash, Wire Range .14-.25mm², 26-24AWG, 13A. Compatible to part # SC24M1D70
REQUEST A QUOTE
SS24M1G10 Socket Contact, Stamped, Size 16, Gold 10µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G15 Socket Contact, Stamped, Size 16, Gold 15µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G30 Socket Contact, Stamped, Size 16, Gold 30µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
SS24M1G5 Socket Contact, Stamped, Size 16Gold 5µ", Wire Range .14-.25mm², 26-24AWG, 13A
REQUEST A QUOTE
